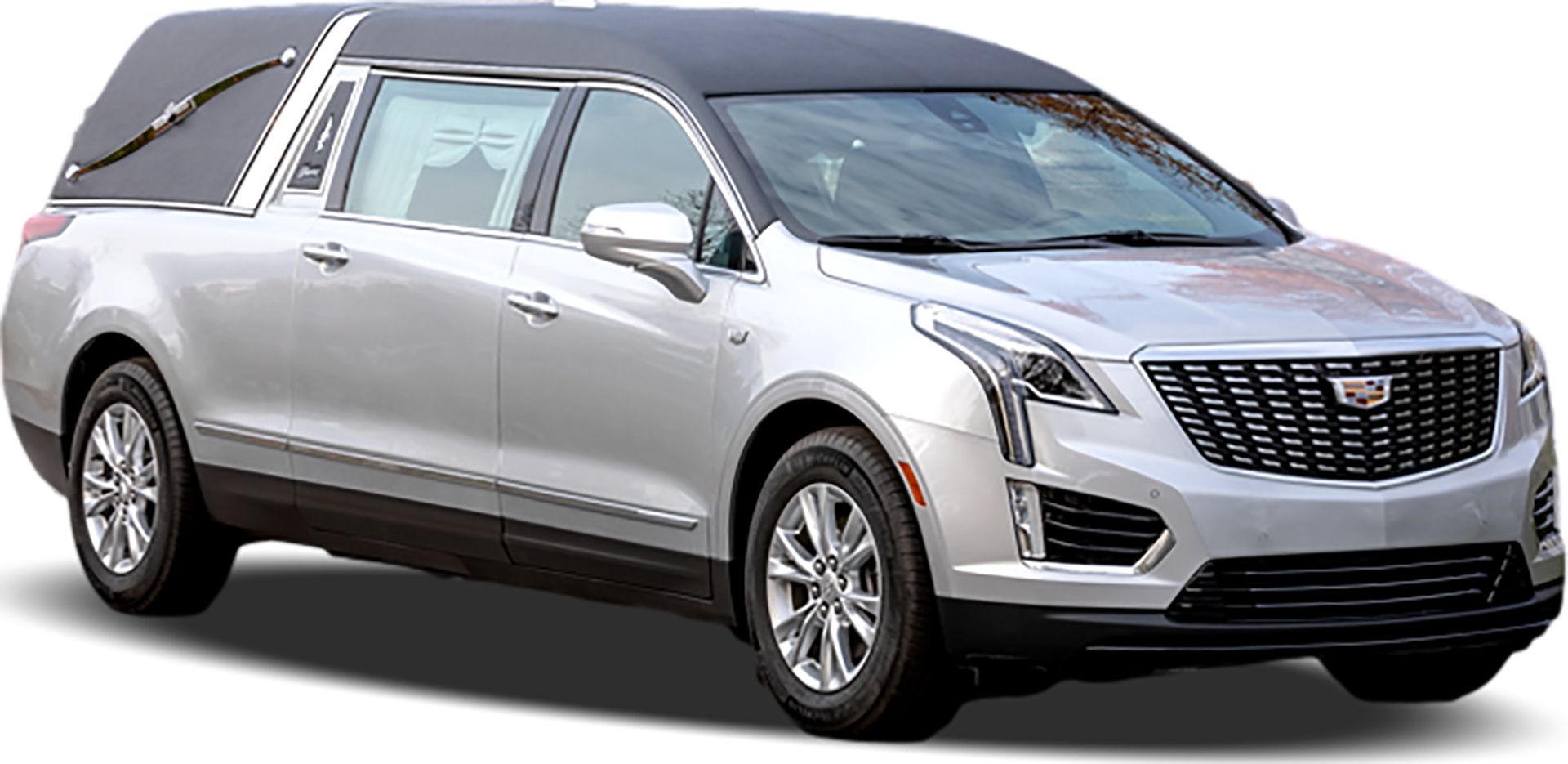

XT5 Statesman

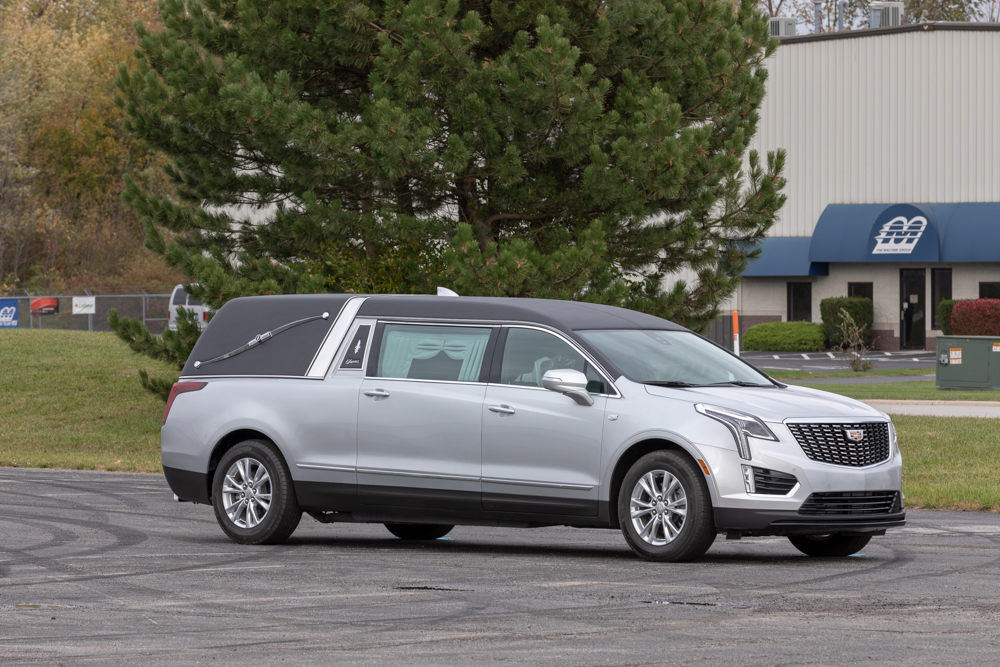

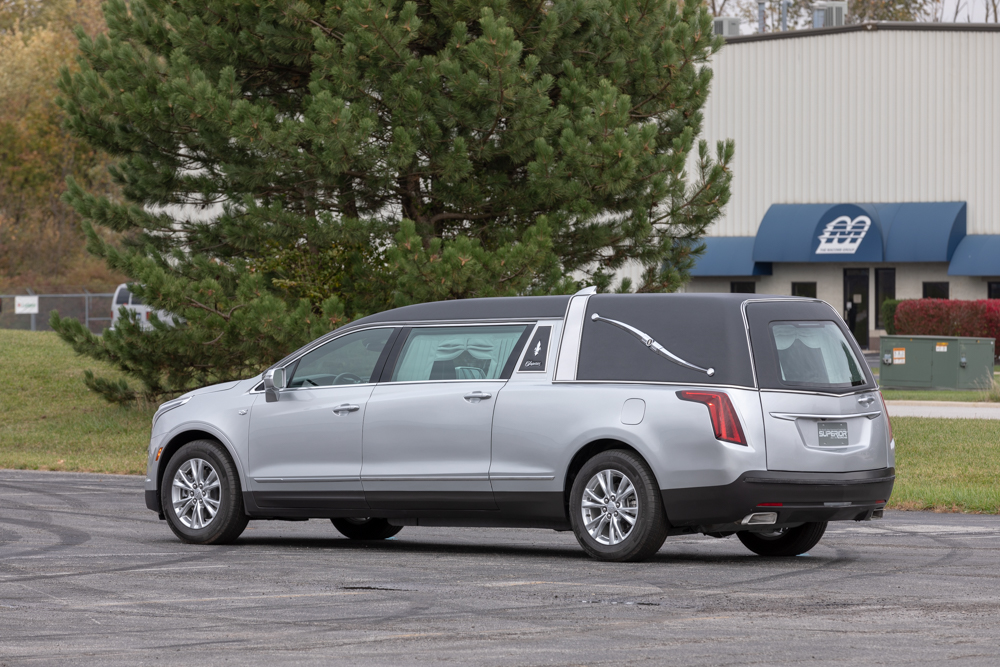

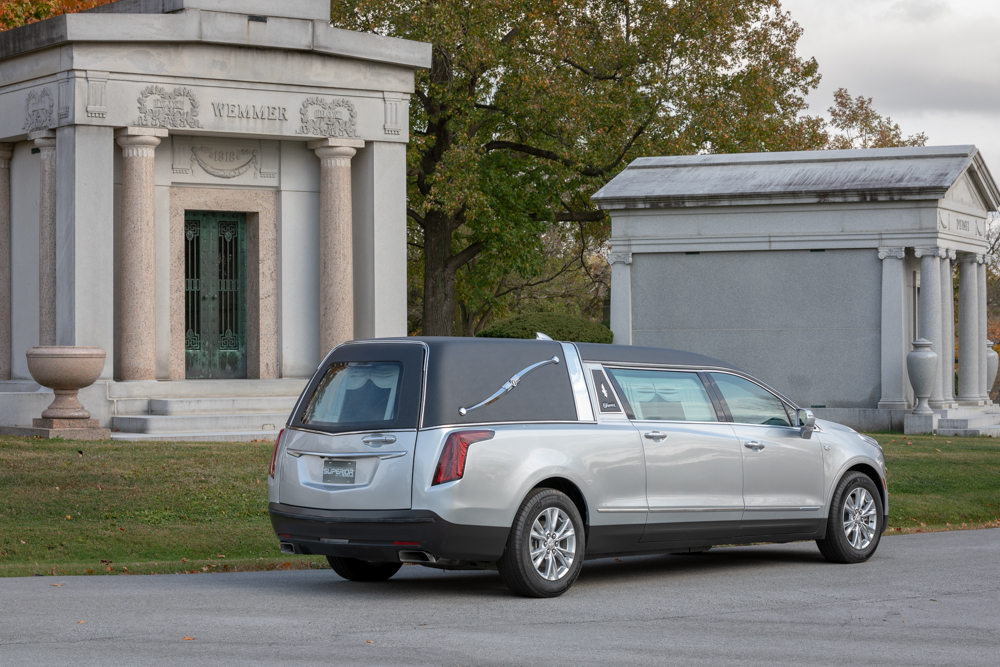

Cadillac Statesman Coach by Superior Coach
SUPERIOR COACH, Cadillac XT5, Statesman, Specifications
General Structural Specifications
- Assembled on the Main Frame Fixture: Linear Rails & Framing Racks for precision alignment
- C Pillars: 12-gauge steel provide support for the rear side doors
- Chassis Extension: 10” Extension after the rear wheels
- Chassis Extension: 40” Wheelbase Extension
- Coach Body: High performance vinyl-ester resin
- Floor Pan: 16-gauge steel floors vs 18 in the OEM
- Floor Supports: 1″x2″ steel tubing with 16-gauge walls for maximum support
- Hinges: 7-gauge steel for all hinge plates, 3/8” steel gusset reinforcements, and 10-gauge steel striker
- Interior Wheel Wells: Modified and reinforced for maximum casket width
- Partition: 16-gauge steel tubing and 45◦ structural supports
- Rockers: 12-gauge inner and outer rockers with internal reinforcements vs 14-gauge in OEM
- Super-Structure: 16-gauge 1 ¼” steel tubing for unsurpassed strength
- Windshield and Pillars: OEM
Standard Functional Features
- 3rd break light mounted in rear load door
- Axalta Chroma Premier Paint System: Sealer, Base Coat and Clear Coat: 7 – 9 coats
- Back-Up Sensors
- Bumper Protector

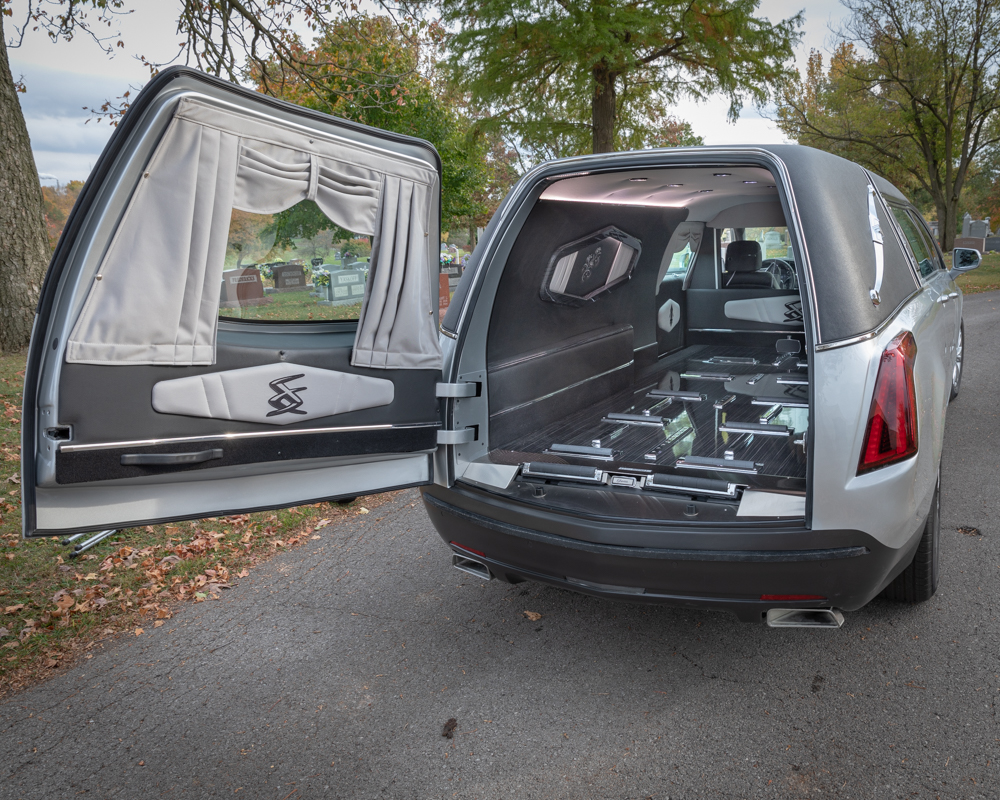

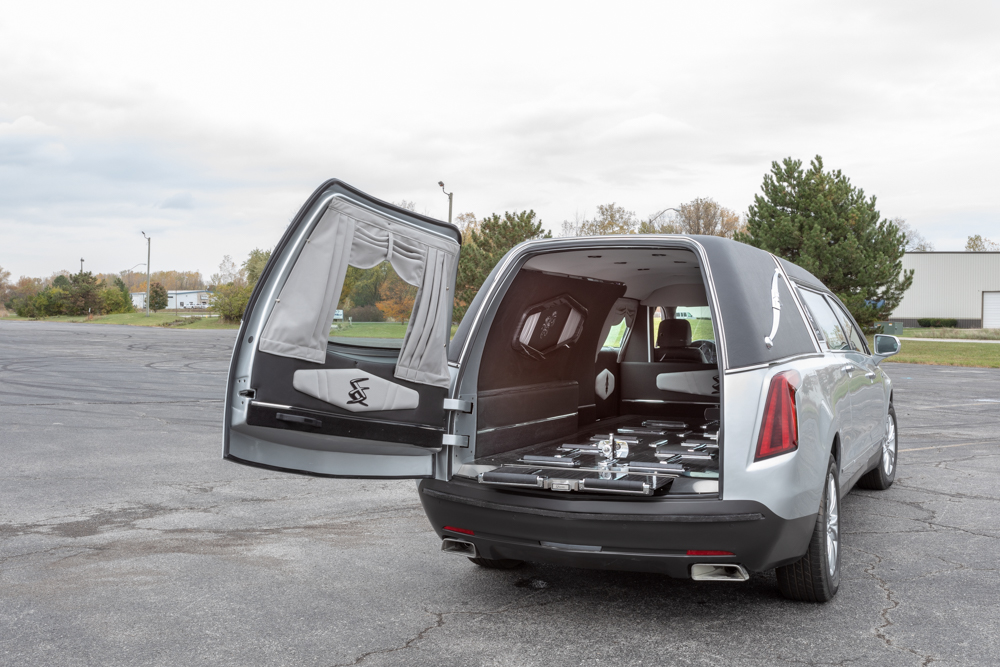

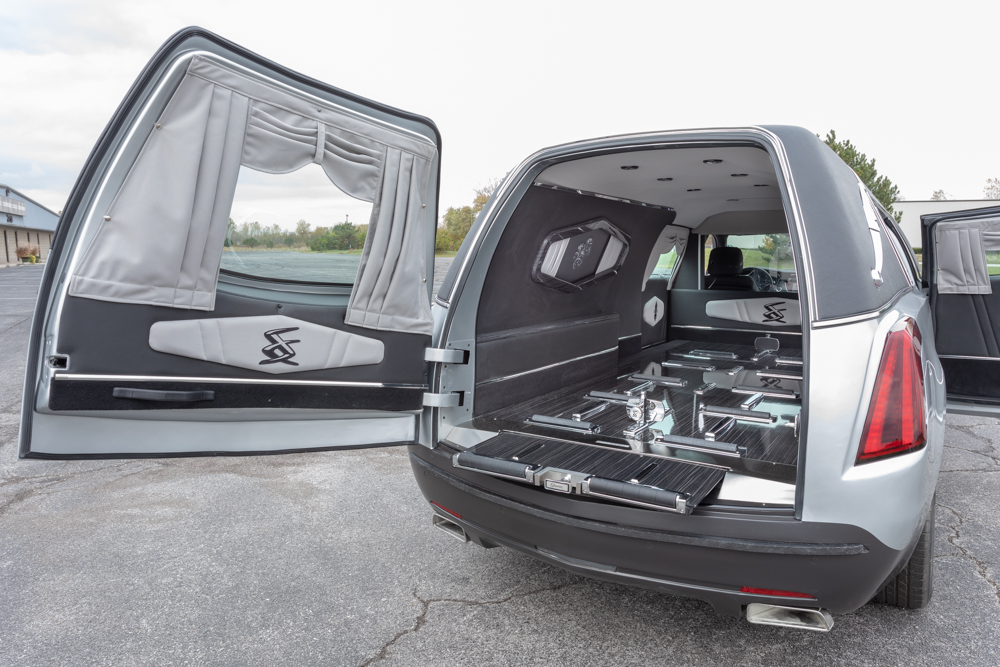

- Casket Door Hinge – Traditional left hand casket door hinge – opens 135°
- OEM Windshield and Pillars
- Drip Rails – Polished Aluminum
- Emergency Load Door Release – accessible outside the coach
- Spare Tire – Space Saver
- Gas Tank: 19-Gal, right side fill
- Extension – Double cut- 46″ wheelbase extension plus 10″ rear

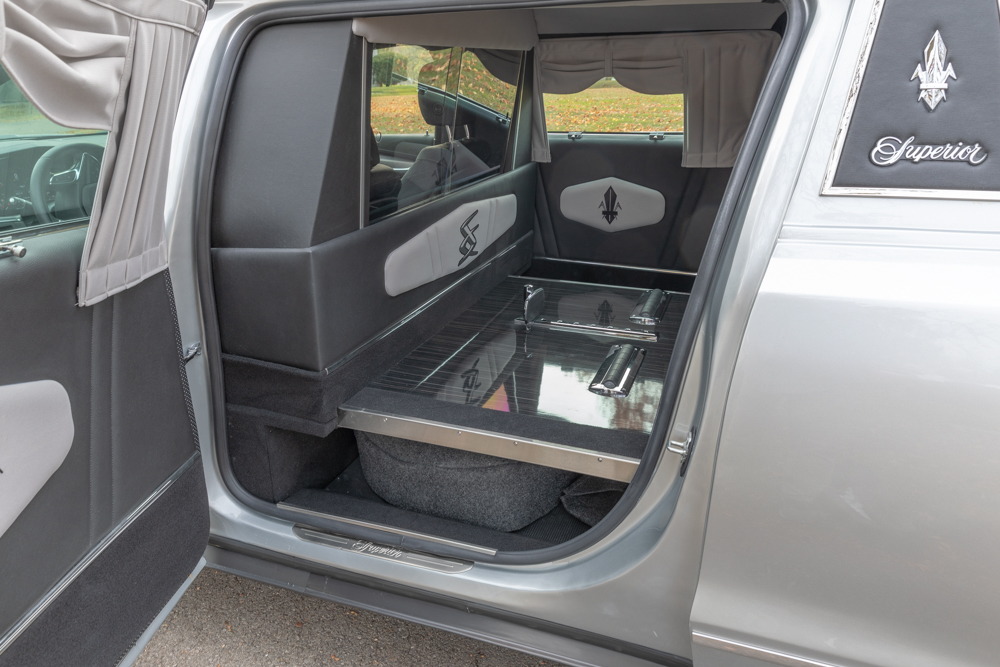

- Side door – 47″ wide with a 78° opening
- Tempered Glass Partition tilted to reduce glare
- 4-Year / 50,000 Mile Conversion Warranty
- Wheels, 18″ (45.7 cm) 6-Split Spoke alloy with Pearl Nickel finish
- Front-wheel drive
- Engine, 2.0L Turbo, 4-cylinder, SIDI with Automatic Stop/Start (235 hp [175 kW] @ 5000 rpm, 258 lb-ft of torque [350 N-m] @ 1500-4000 rpm)
- Transmission, 9-speed automatic

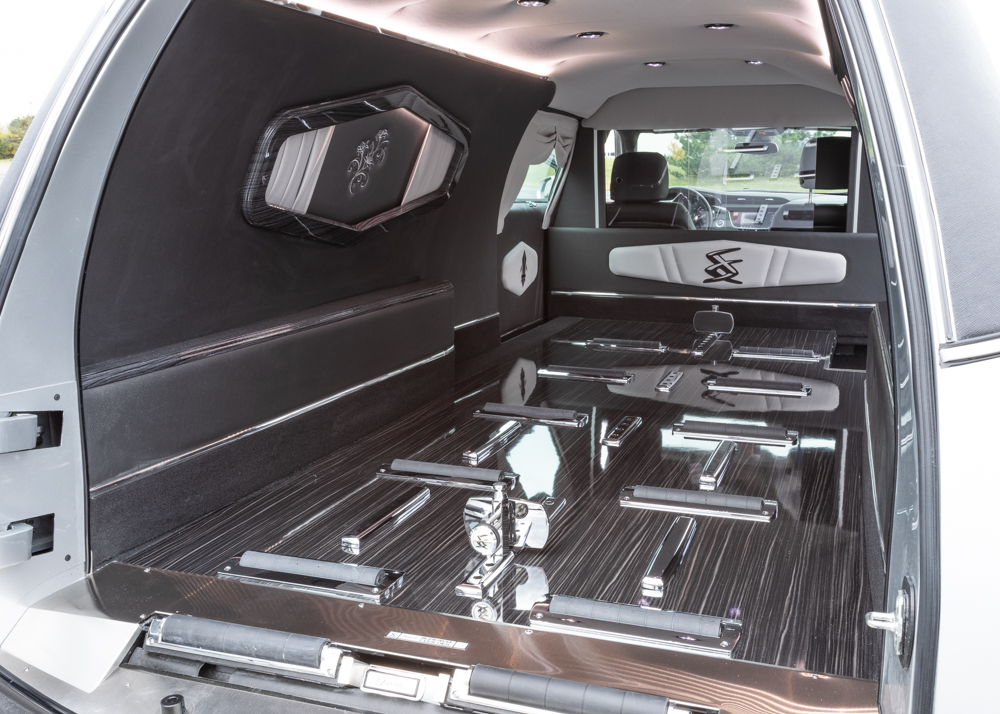

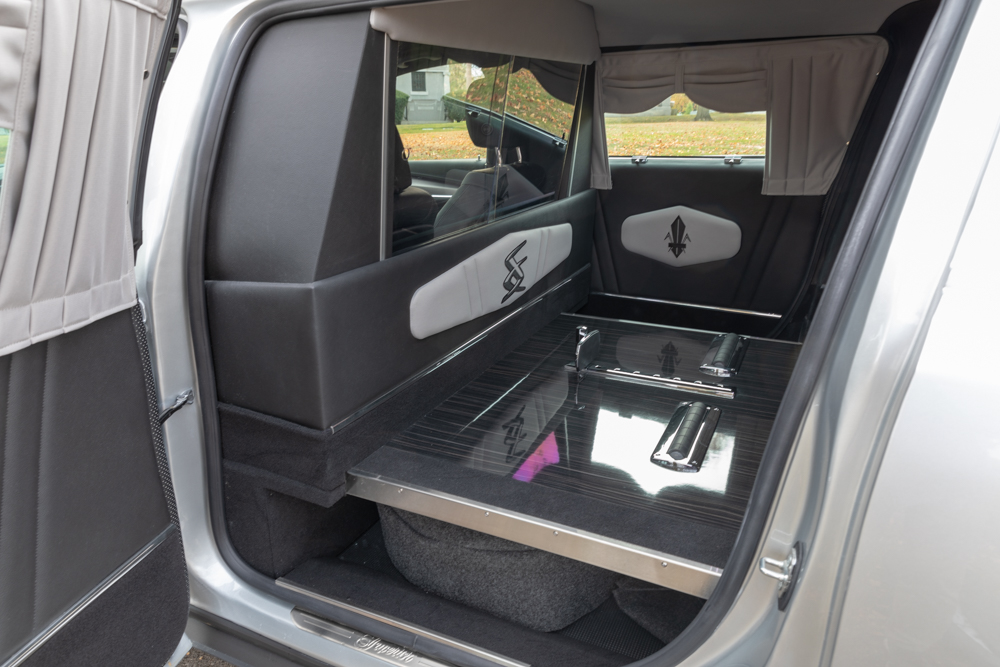

Standard Interior Features
- Bier Pin Plates – Front, 1

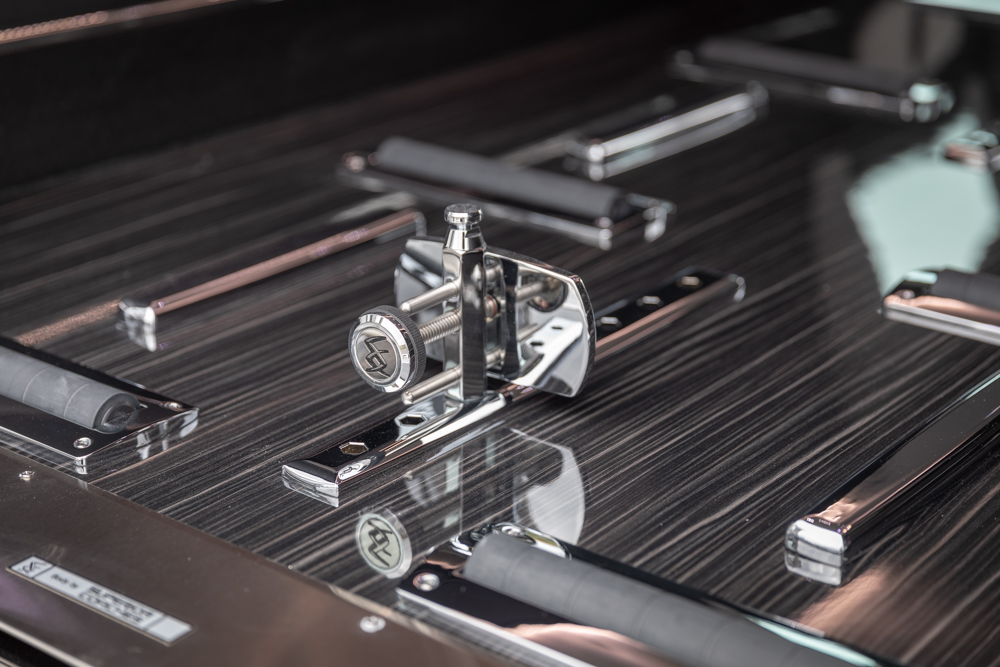

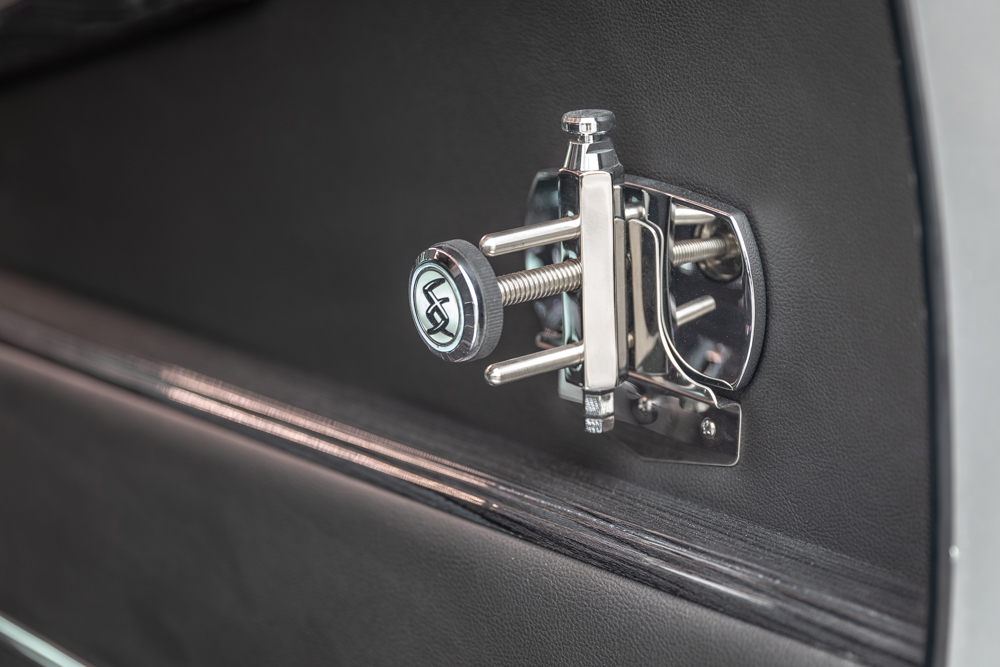

- Bier Pins – Adjustable, quick release
- Church Truck Well – Opened
- Deluxe Cloth Headliner
- Die-Cast, Chrome Plated Hardware: 12 rollers total – 2 90°
- Die-Cast, Chrome Plated Hardware: 4 skid bars
- Die-Cast, Chrome Plated Hardware: 5 bier pin plates
- Drapes – 1 – piece with swags

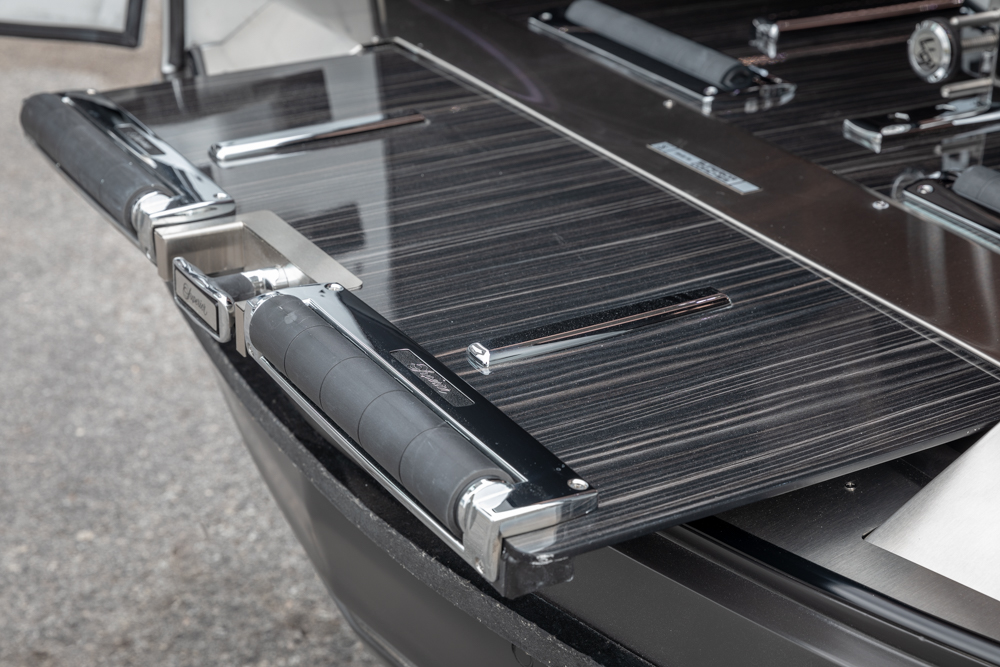

- Floor Extension – Pull out sill and 2 90° rollers

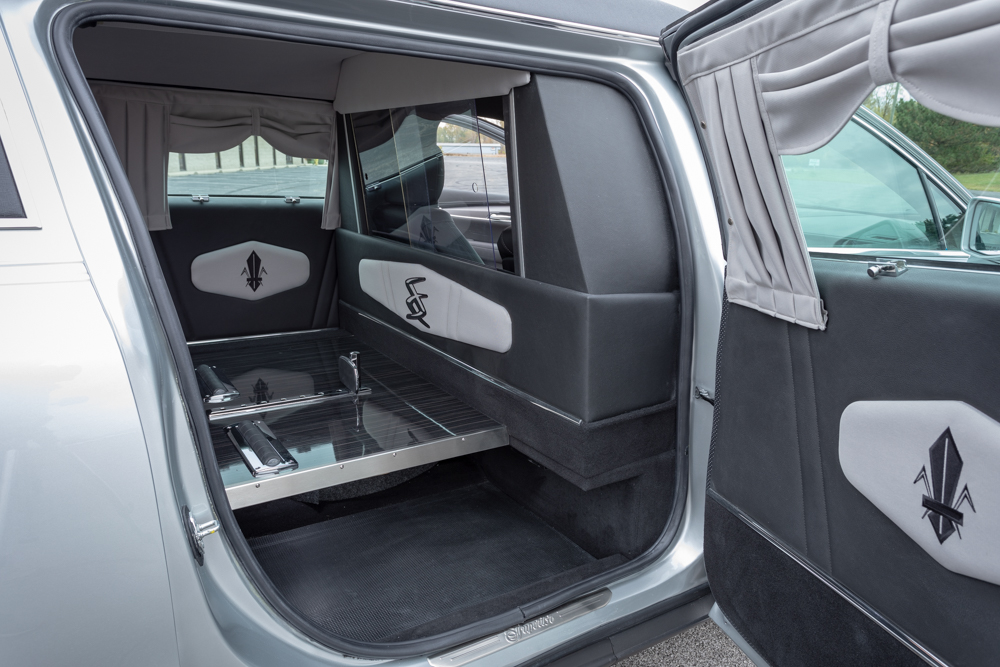

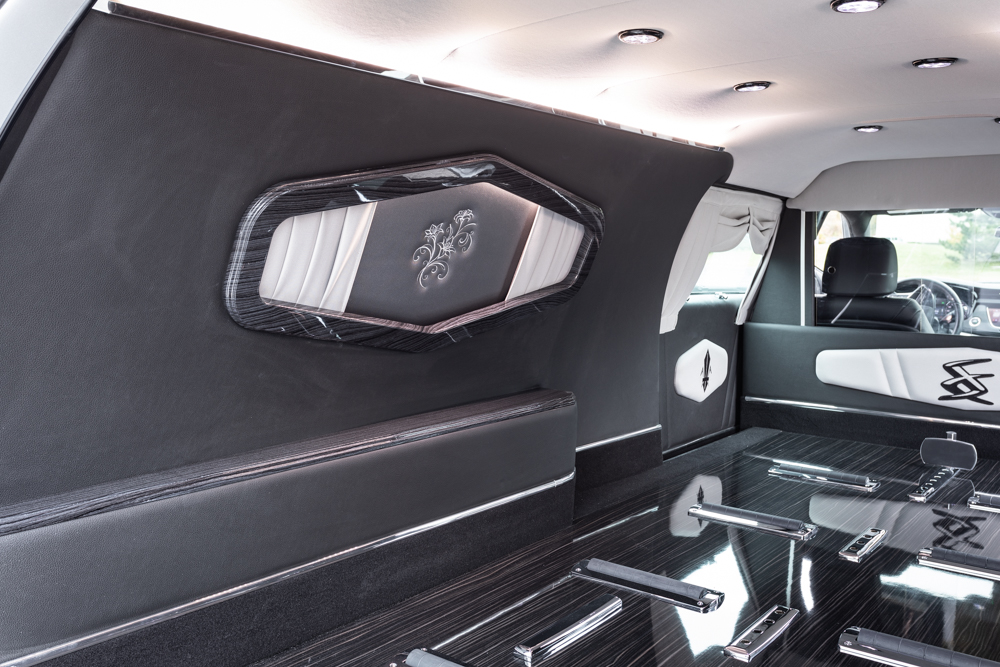

- Interior Sidewalls – Shadow Box & Wheel Cover Trim
- Lighted underfloor storage for spare tire and church truck
- Nameplate Brackets on Side Doors

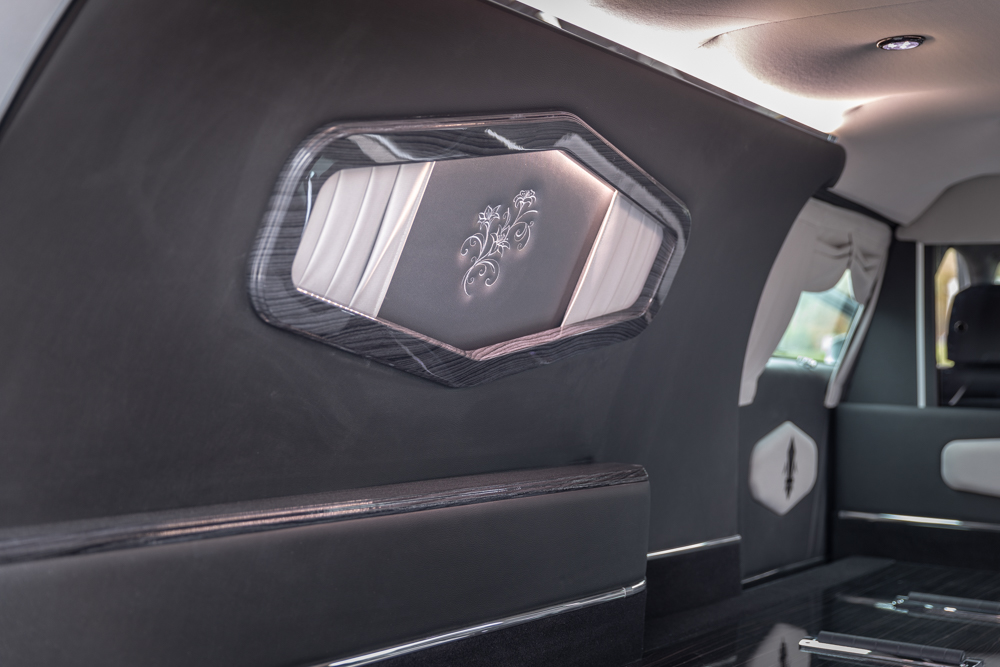

- Partition – with Decorative Trim
- Phenolic Floor Covering
- Pull Handle on Load Door
- Umbrella storage
- Urn Holder – Electric
Standard Exterior Features
- Badging – Superior
- Belt Moldings – Chrome
- Pillars – B+C, Black
- Rocker Moldings – Painted Body Color
- Roof – Full Vinyl with 1/4 inch padding
- Superior Landau Bows – Chrome plated
- Motif Panel – Padded vinyl, with the Superior Fleur des Lis, and a Stainless Steel Frame
- Stainless Steel vinyl top reveal molding
- Strobes – 4-way – Clear
- Side door glass with B & C Pillar Appliques
Optional Features
- Bumper Protector – Carpet – Full Floor
- Casket Door Hinge – Right Hand Side
- Casket Guides – Protects interior wheel well from casket damage
- Church Truck Well – Closed W/ Flip Lid
- Drapes – 3 – piece sliders – Deluxe
- Flagstaff Holders-12” with 2 sets of flags
- Flagstaff Holders -18” with 2 sets of flags
- Floor Extend Table – Hydraulic – Full Floor
- Floor Extend Table – Manual – Full Floor
- License Plate Bracket – Install Front
- Light Bar – Mini LED with Base and Wiring
- Light Bar – Pre-Wiring only
- Name Plate Brackets – Load Door
- Paint – Full Body Repaint – Past Model Year – Standard Colors
- Paint – Full Body Repaint – Past Model Year – Tri-Coat
- Paint – GM/Ford Paint Upcharge – Special Colors
- Pillars – B+C, Stainless Steel Appliques
- Roof – Paint 1/2 Top
- Roof Band – Polished Stainless Steel – In the Motif Panel (wide)
- Strobes – 360° Package
- Strobes – 4-way – Purple
- Strobes – Windshield
- Undercoating
- Urn Holder – Portable
Dimensions:
| Overall length | 239.6″ |
| Overall height | 70.1″ |
| Overall width | 77.3″ |
| Overall extension | 50″ |
| Wheelbase | 152.5″ |
| Casket floor length (usable space) | 109.5″ |
| Loading door height | 39″ |
| Loading door width | 46.5″ |
| Loading door angle | 135° |
| Loading height | 27.5” |
| Width between wheelhouses | 45.5″ |
| Side door opening angles | 78° |
* Due to continuous improvement, Superior specifications are subject to change without notice or price adjustment.
