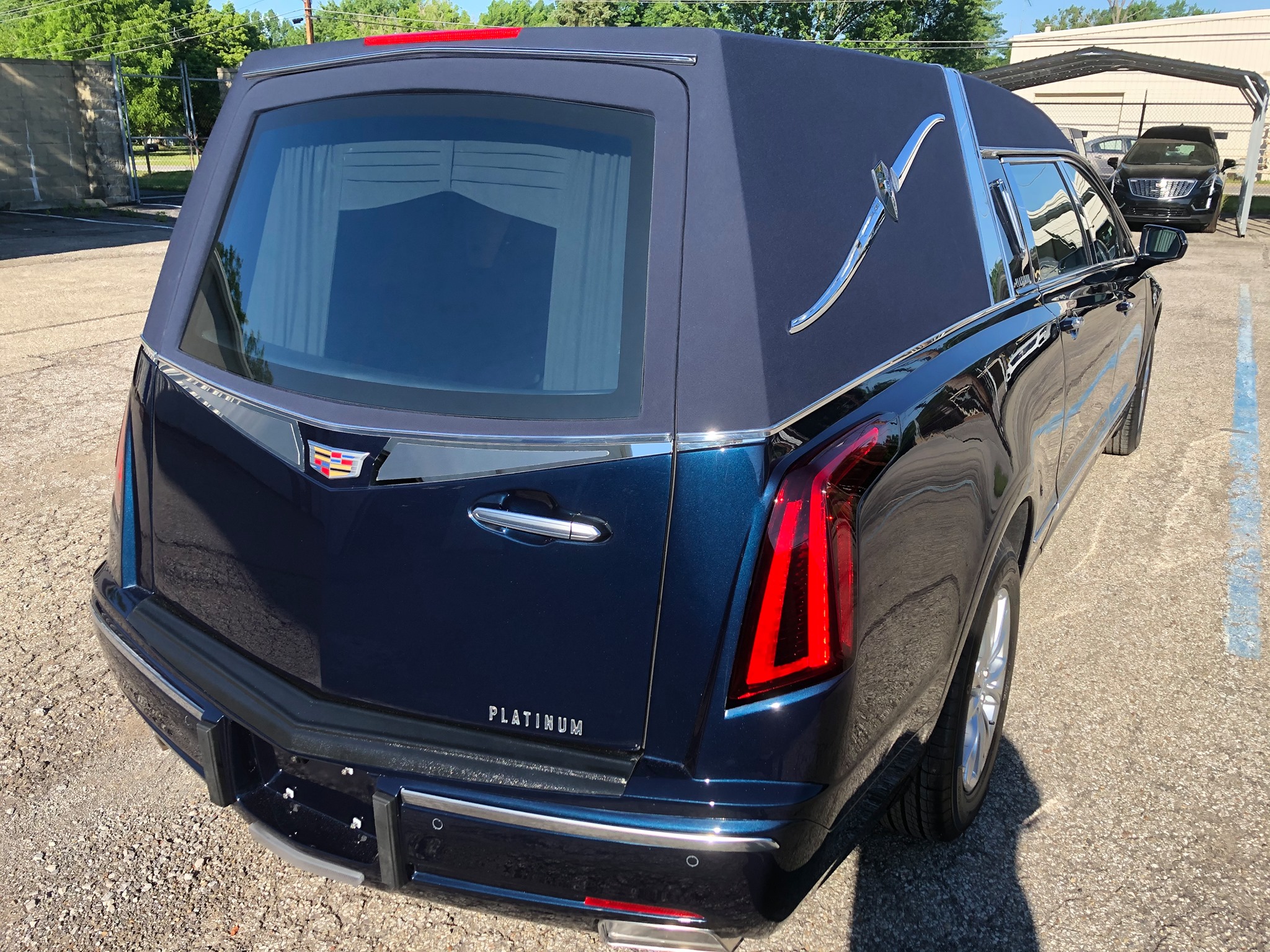

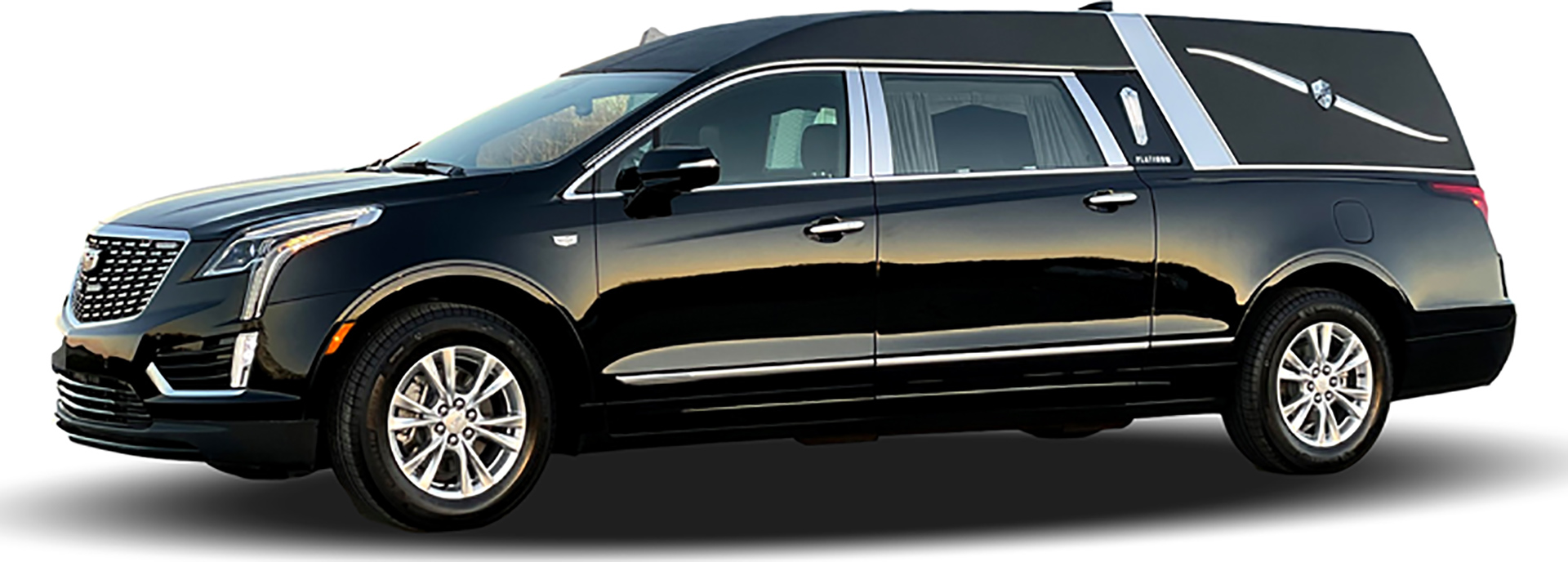

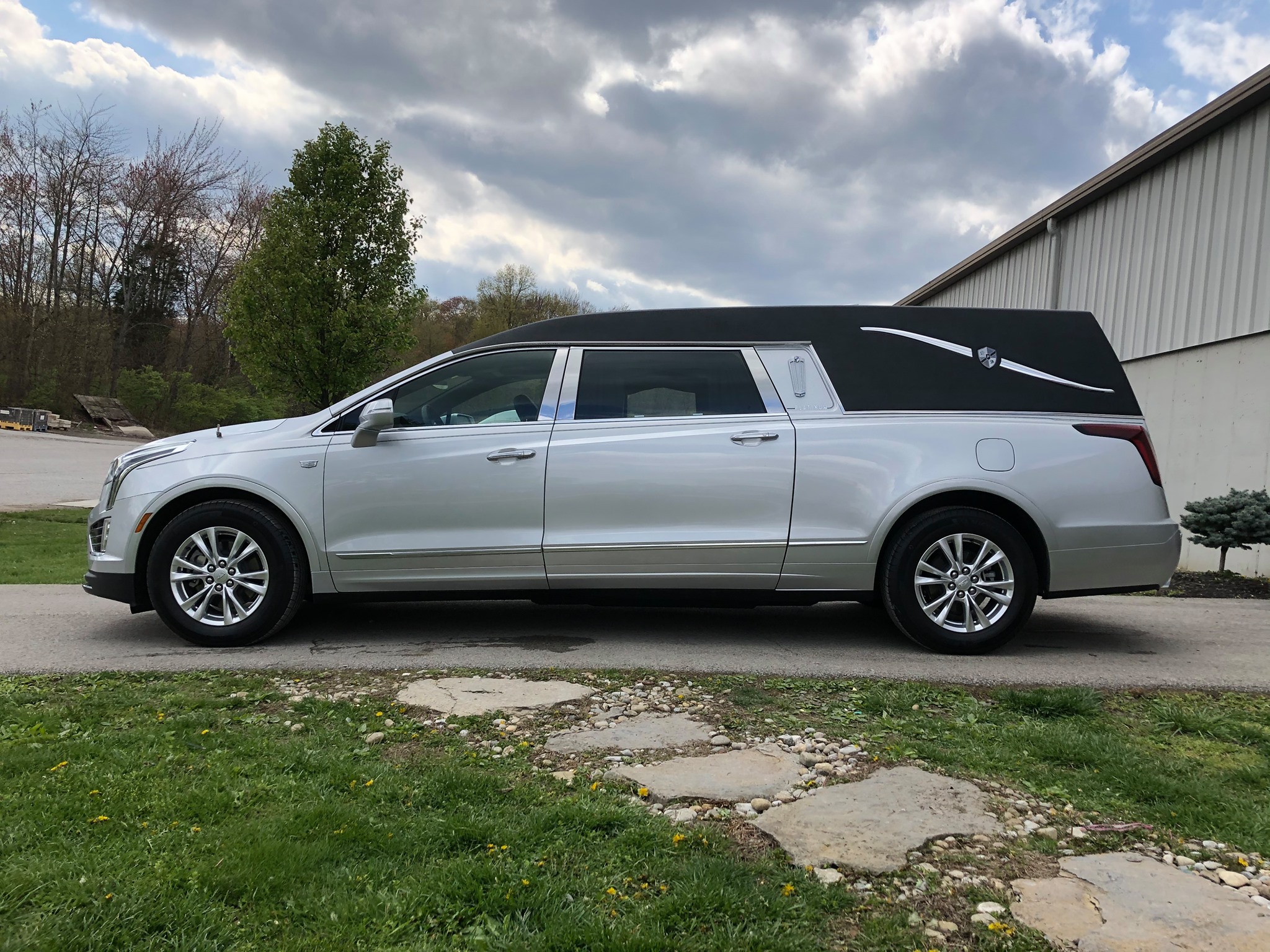

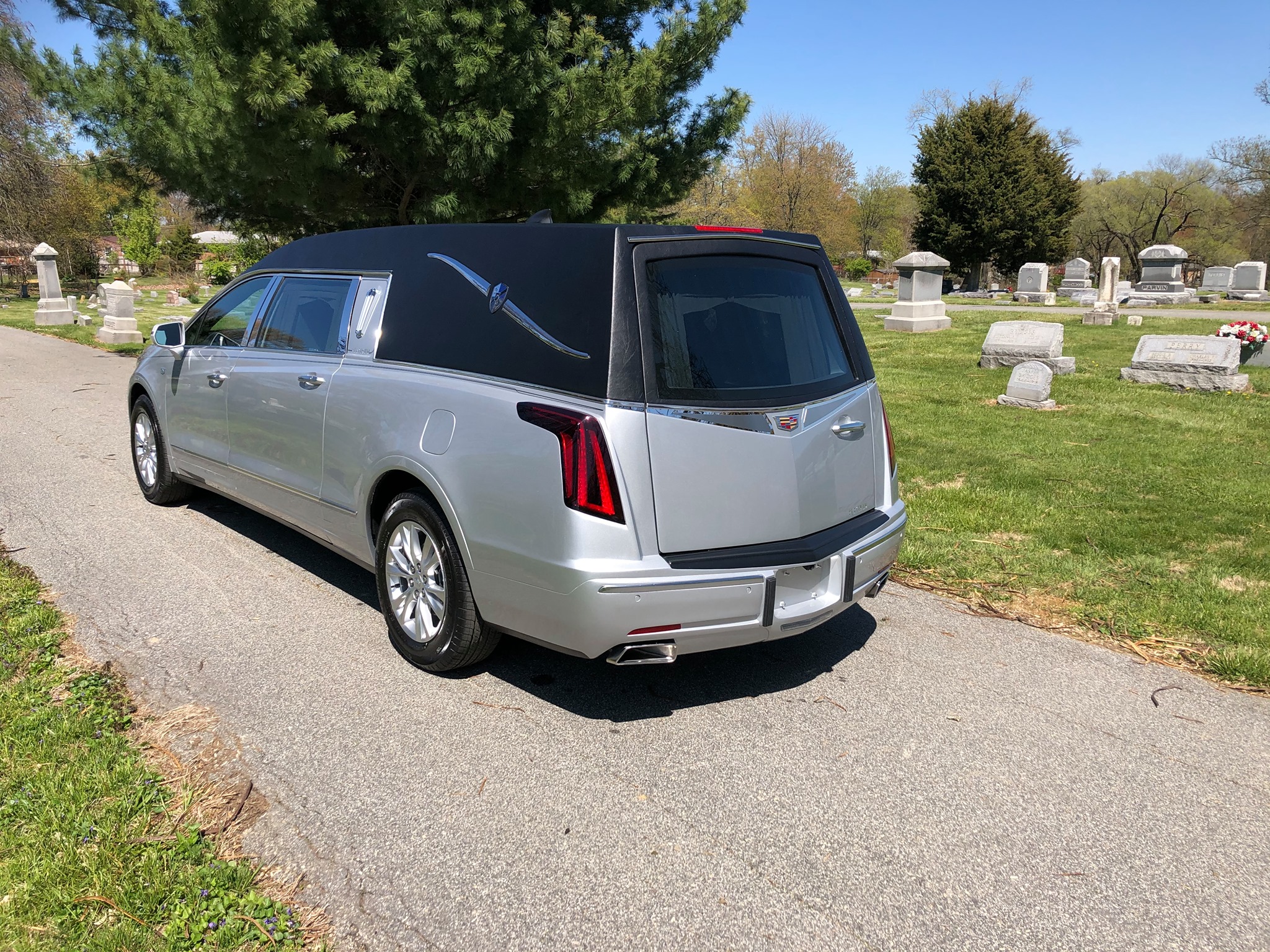

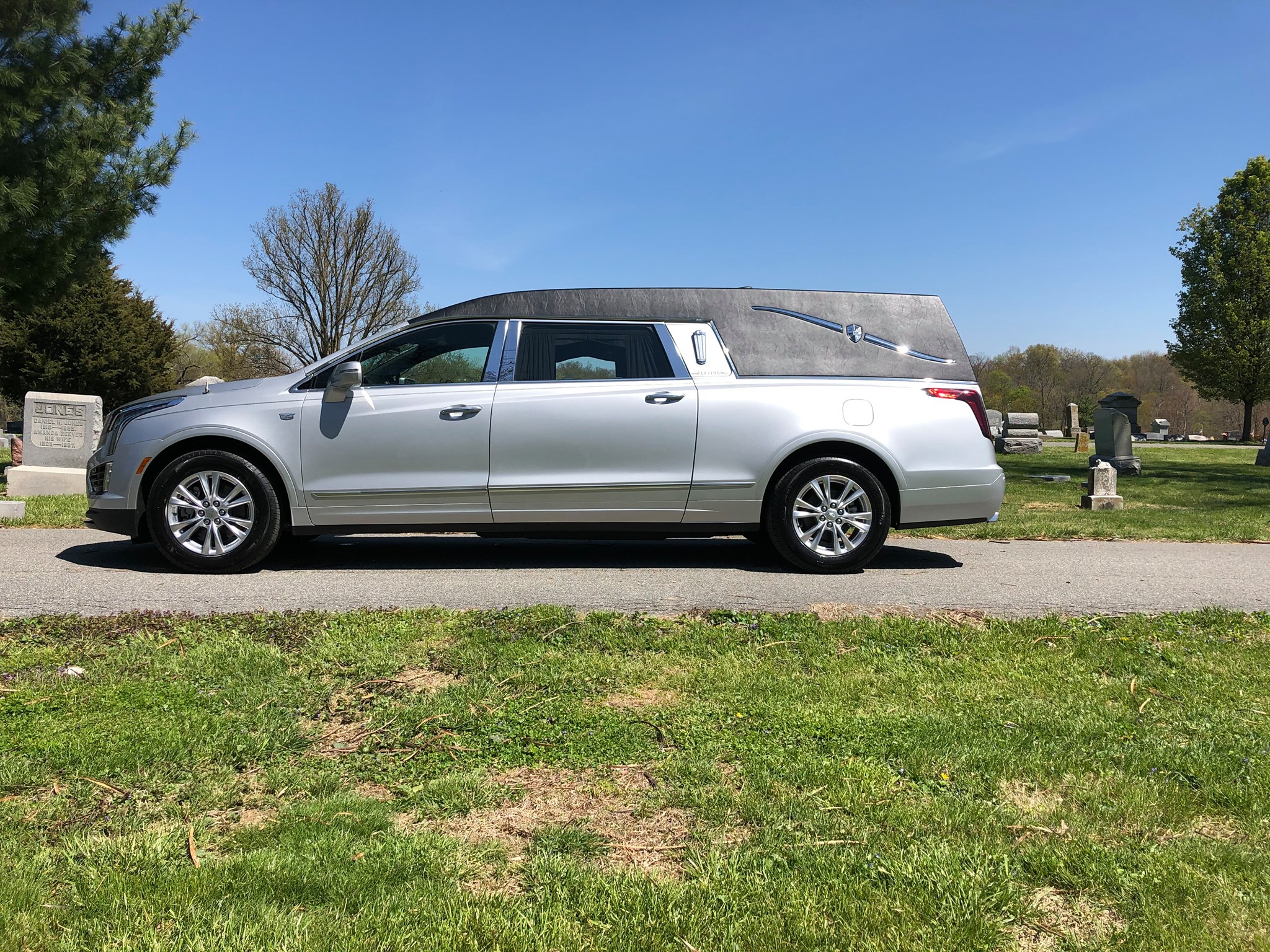

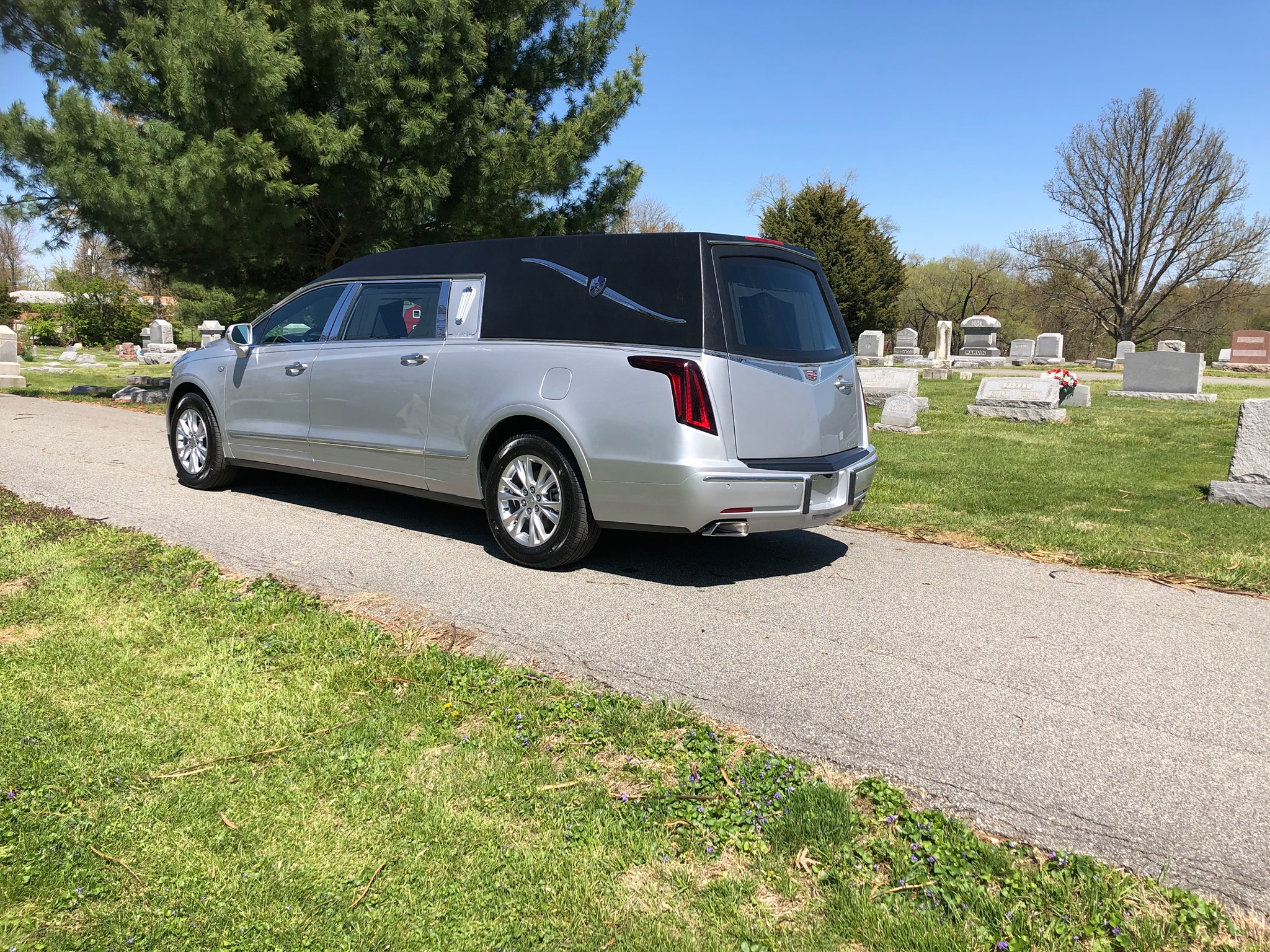

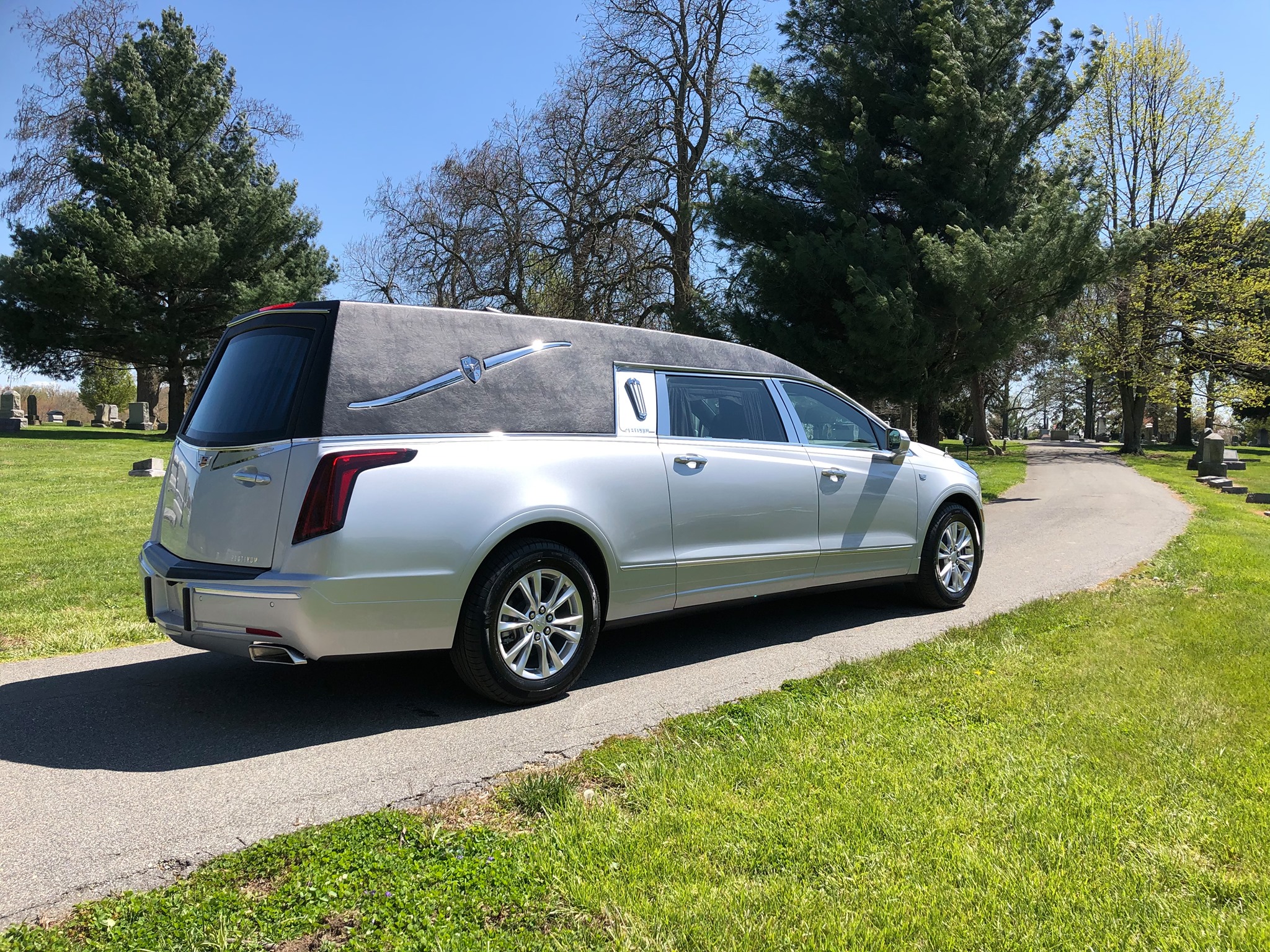

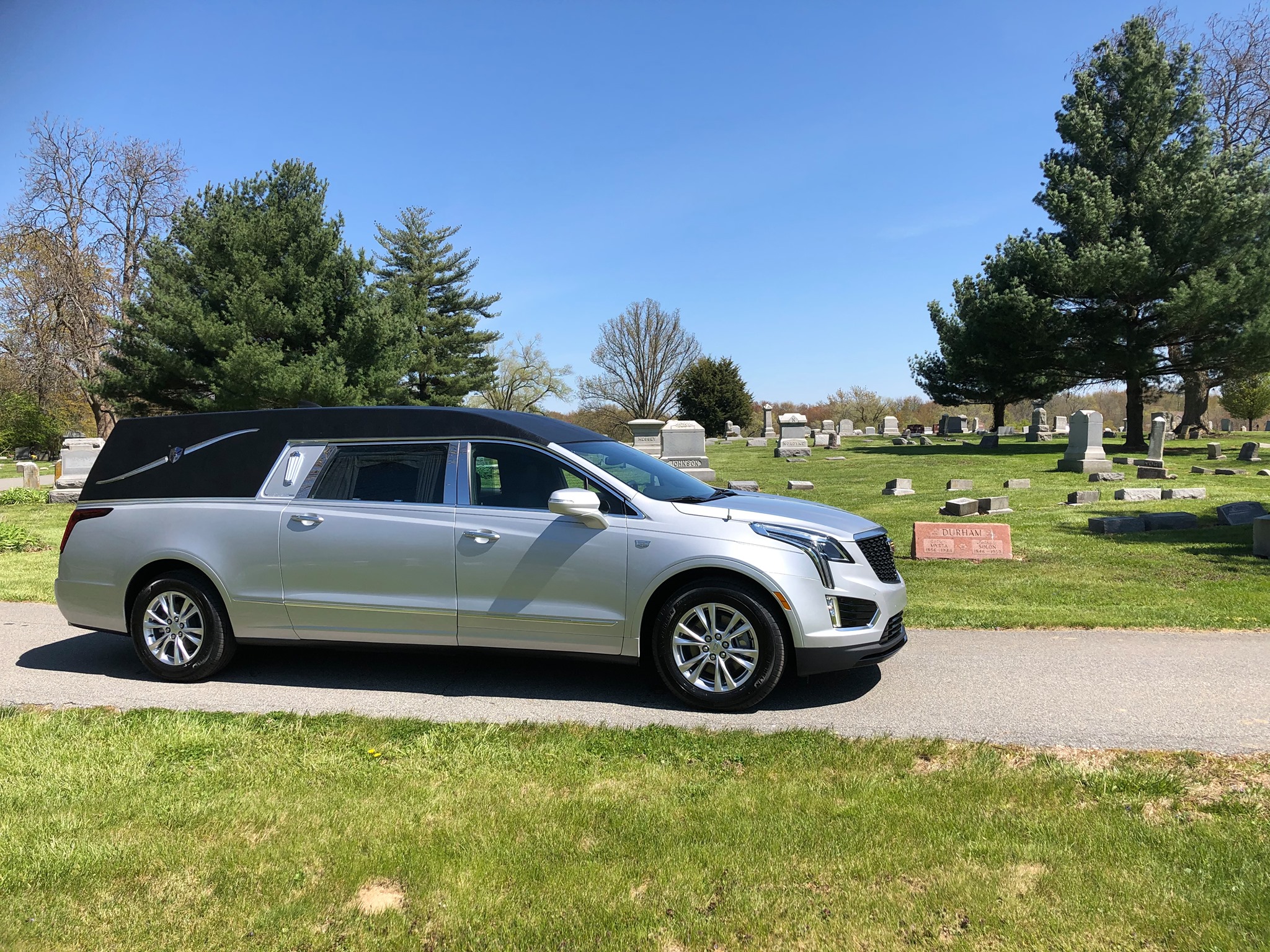

XT5 Phoenix

Phoenix Coach

PLATINUM COACH, Cadillac XT5, Phoenix, Specifications

Exterior

  • 50” Total Chassis stretch. 34” in the middle plus 16” at the rear.
  • Full Vinyl Roof with Drip Rails
  • 3 Piece Chrome Landau Bars with Platinum Crest
  • Opera Panel with Coach Lamp set
  • Integrated Rear 3rd Brake Light
  • Bumper Scuff Plate Protector
  • Dual Rear Bumper Guards
  • Matching OEM STYLE lower body side moldings
  • Pinstripe
  • Emergency Power Release Button

Interior

  • Laminated Casket Floor with choice of Closed or Open Well
  • 8 Standard rollers
  • 2 X 90-degree rollers
  • Stainless Sill Plate
  • 4 Skid Bars
  • Choice of Vinyl or Cloth Interior
  • Full Partition with Platinum decorative plate
  • 2 Piece Sliding Glass Partition Window
  • Side Door Panels with Cadillac Embroidery
  • Load Door Flower Arrangement Embroidery
  • Matching Side and Load Door Drapes
  • Backlit Shadow Boxes with Platinum Crest
  • Wheel Well Box Covers with Matching Laminate Accents
  • Umbrella Storage Compartment
  • Spare Tire with Cover

Dimensions

Interior

casket load height (ground to top of roller) 30”
casket load height (top of roller to bottom of upper door casing) 37.5”
casket load width (41” usable interior casket width) 43”
overall floor length 113”
usable floor length between bier pins 100”

Exterior

overall length 239”
overall width 76”
overall height 72”
