XT5 Medalist

Cadillac Medalist by S&S Coach Company

S&S COACH COMPANY, Cadillac XT5, Medalist, Specifications

General Structural Specifications

  • Assembled on the Main Frame Fixture: Linear Rails & Framing Racks for precision alignment
  • C Pillars: 12-gauge steel provide support for the rear side doors
  • Chassis Extension: 10” Extension after the rear wheels
  • Chassis Extension: 40” Wheelbase Extension
  • Coach Body: High performance vinyl-ester resin
  • Floor Pan: 16-gauge steel floors vs 18 in the OEM
  • Floor Supports: 1″x2″ steel tubing with 16-gauge walls for maximum support
  • Hinges: 7-gauge steel for all hinge plates, 3/8” steel gusset reinforcements, and 10-gauge steel striker
  • Interior Wheel Wells: Modified and reinforced for maximum casket width
  • Partition: 16-gauge steel tubing and 45◦ structural supports
  • Rockers: 12-gauge inner and outer rockers with internal reinforcements vs 14-gauge in OEM
  • Super-Structure: 16-gauge 1 ¼” steel tubing for unsurpassed strength
  • Windshield and Pillars: OEM

Standard Functional Features

  • 3rd break light mounted in rear load door
  • Axalta Chroma Premier Paint System: Sealer, Base Coat and Clear Coat: 7 – 9 coats
  • Back-Up Sensors
  • Bumper Protector
  • Casket Door Hinge – Traditional left hand casket door hinge – opens 135°
  • OEM Windshield and Pillars
  • Drip Rails – Polished Aluminum

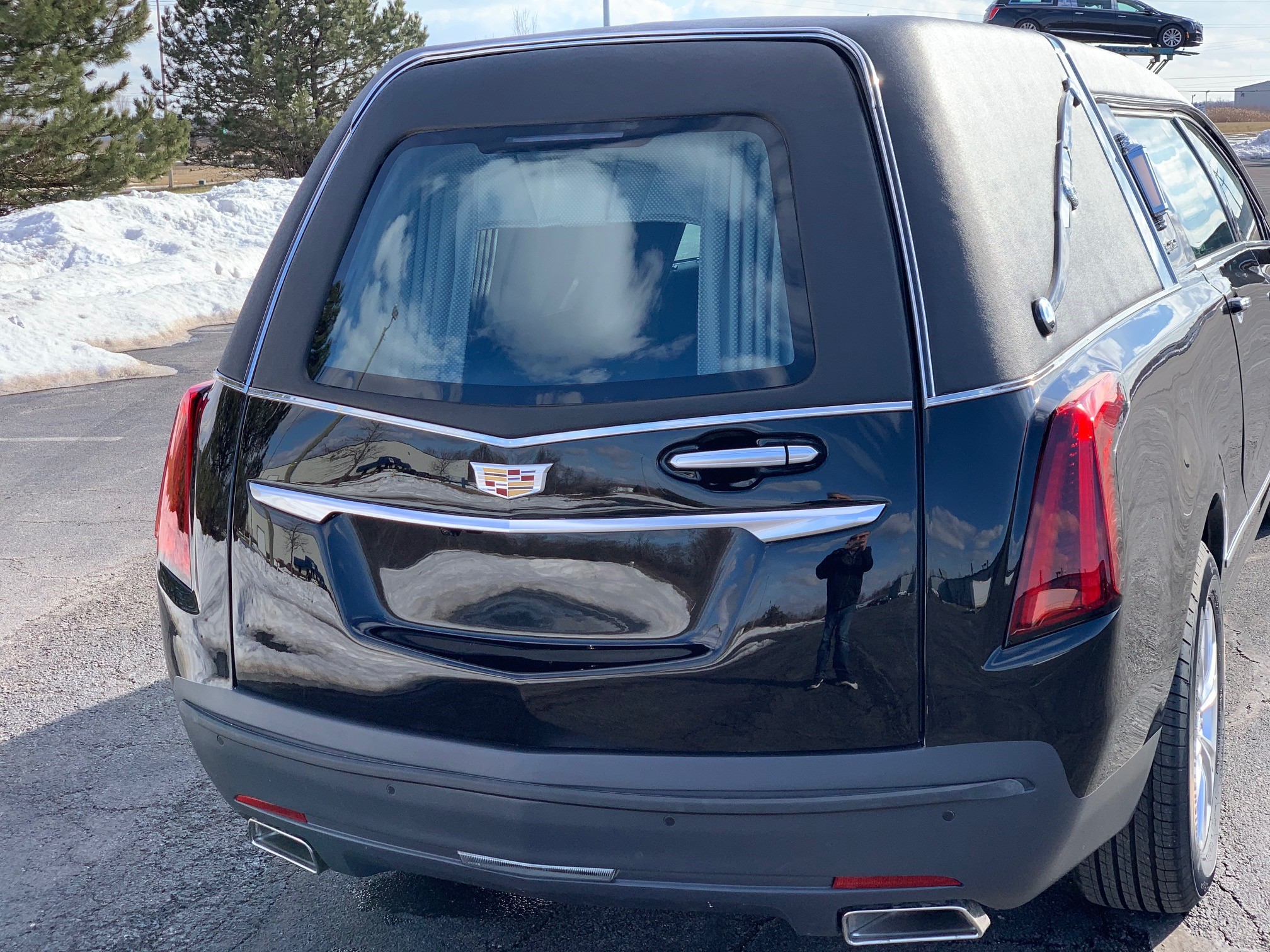

  • Emergency Load Door Release – accessible outside the coach
  • Spare Tire – Space Saver
  • Gas Tank: 19-Gal, right side fill
  • Extension – Double cut- 46″ wheelbase extension plus 10″ rear

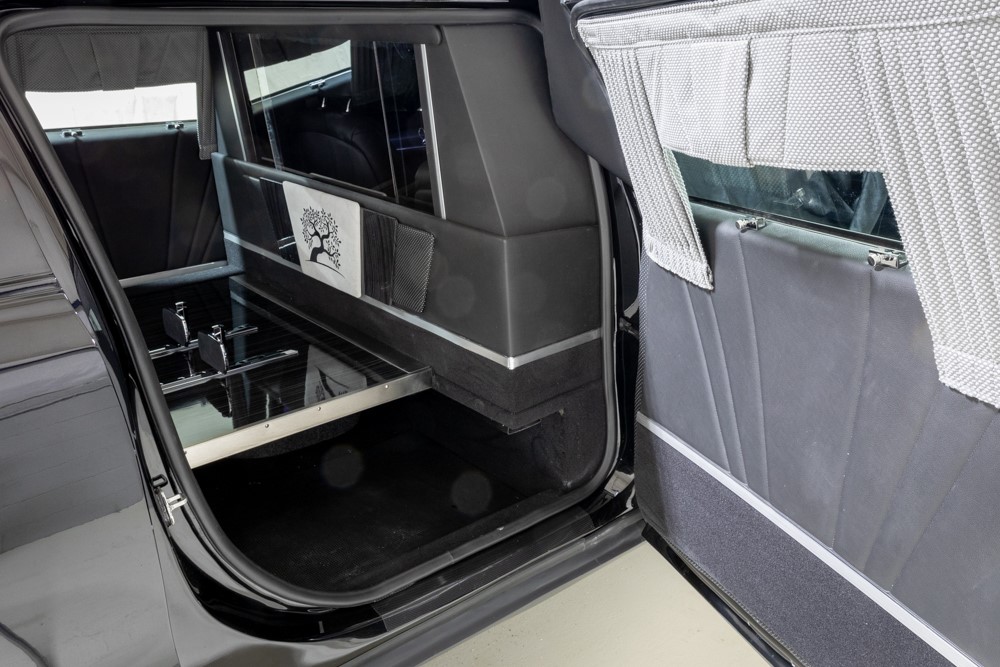

  • Side door – 47″ wide with a 78° opening
  • Tempered Glass Partition tilted to reduce glare
  • 4-Year / 50,000 Mile Conversion Warranty
  • Wheels, 18″ (45.7 cm) 6-Split Spoke alloy with Pearl Nickel finish
  • Front-wheel drive
  • Engine, 2.0L Turbo, 4-cylinder, SIDI with Automatic Stop/Start (235 hp [175 kW] @ 5000 rpm, 258 lb-ft of torque [350 N-m] @ 1500-4000 rpm)
  • Transmission, 9-speed automatic

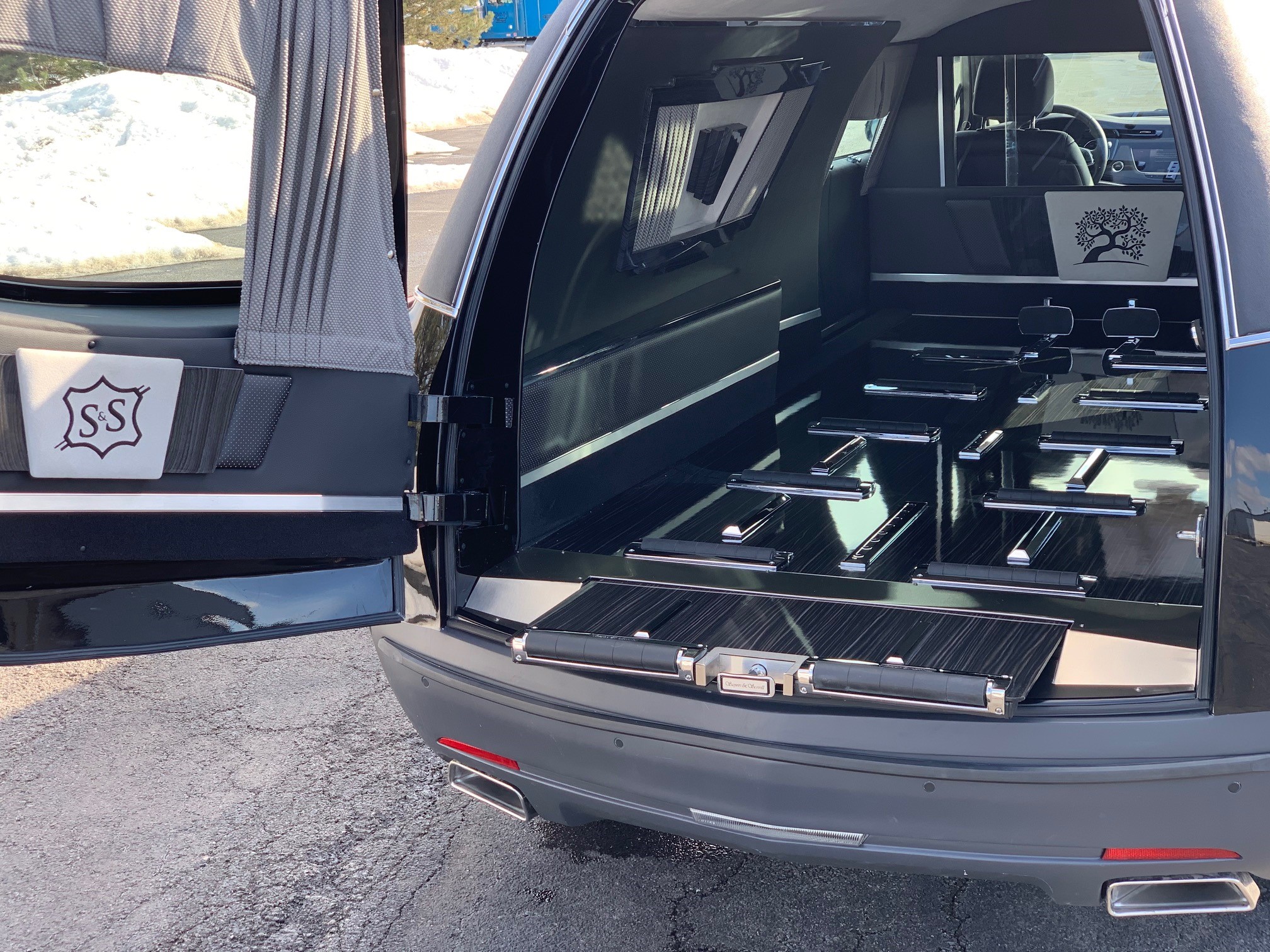

Standard Interior Features

  • Bier Pin Plates – Front, 2

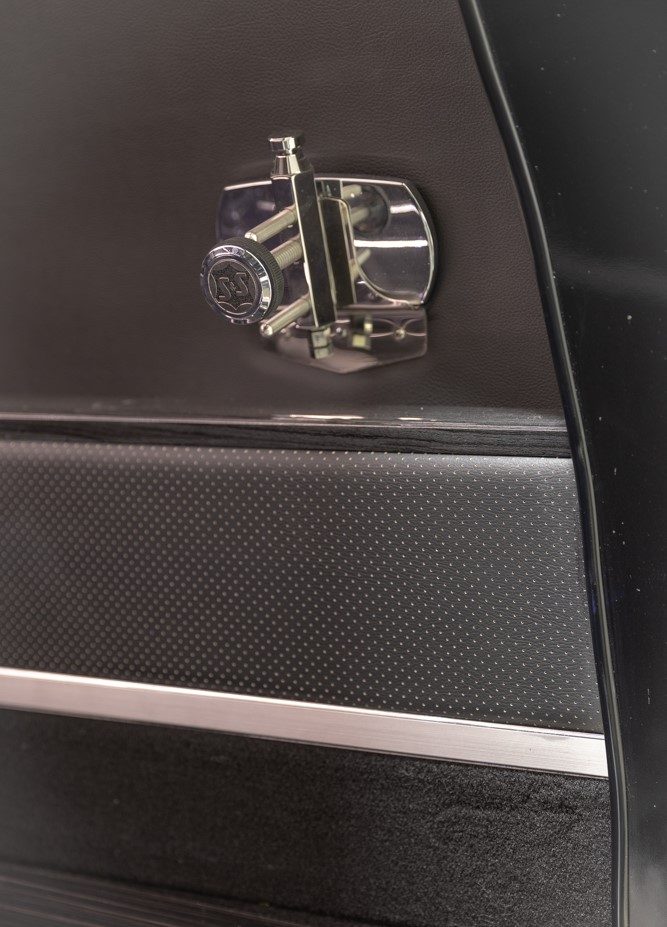

  • Bier Pins – Adjustable, quick release
  • Church Truck Well – Closed W/ Flip Lid
  • Deluxe Cloth Headliner

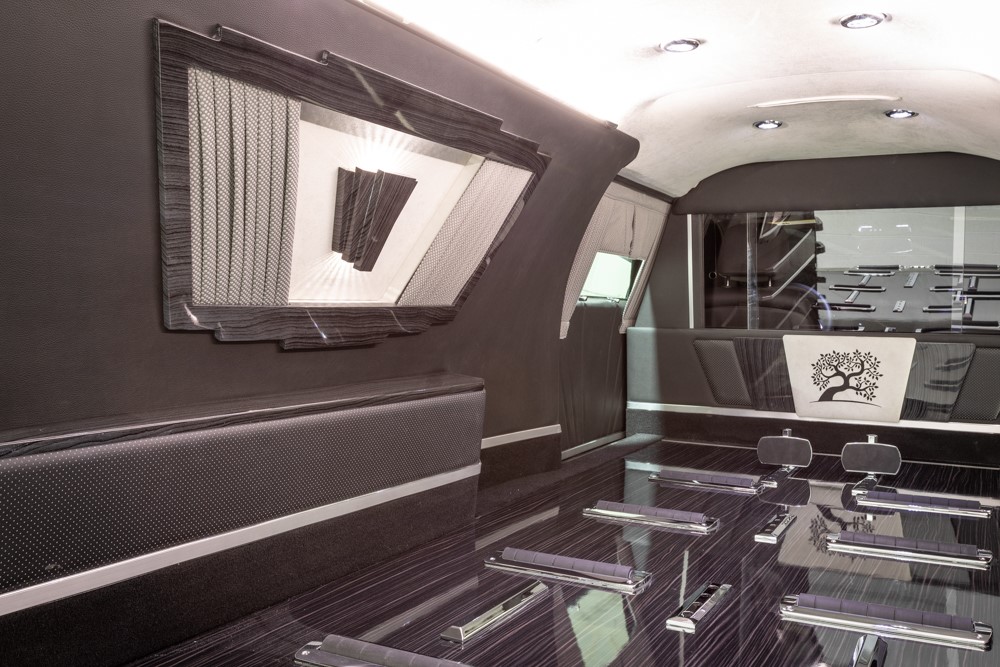

  • Die-Cast, Chrome Plated Hardware: 12 rollers total – 2 90°
  • Die-Cast, Chrome Plated Hardware: 4 skid bars
  • Die-Cast, Chrome Plated Hardware: 5 bier pin plates

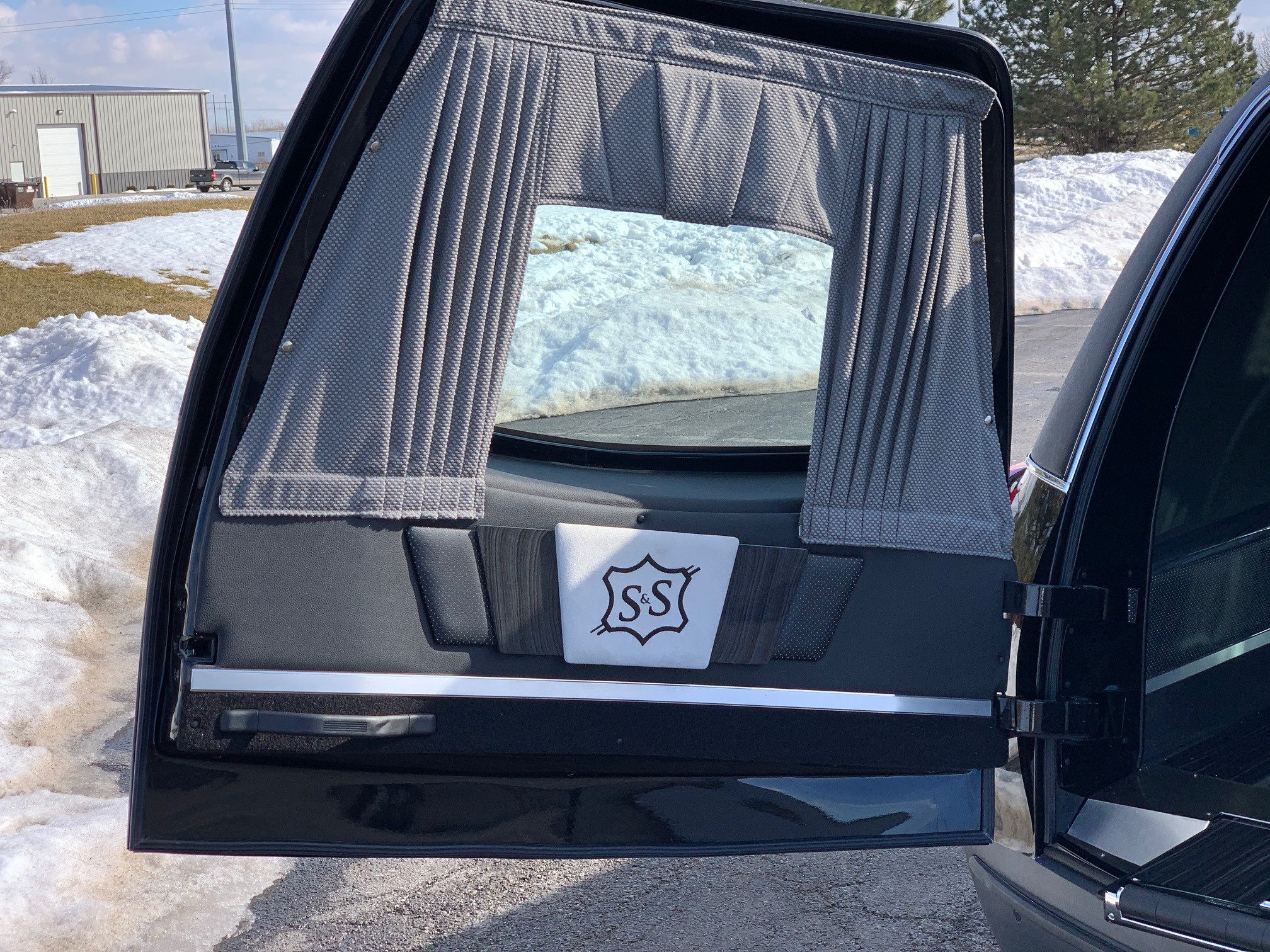

  • Drapes – 1 – piece with swags

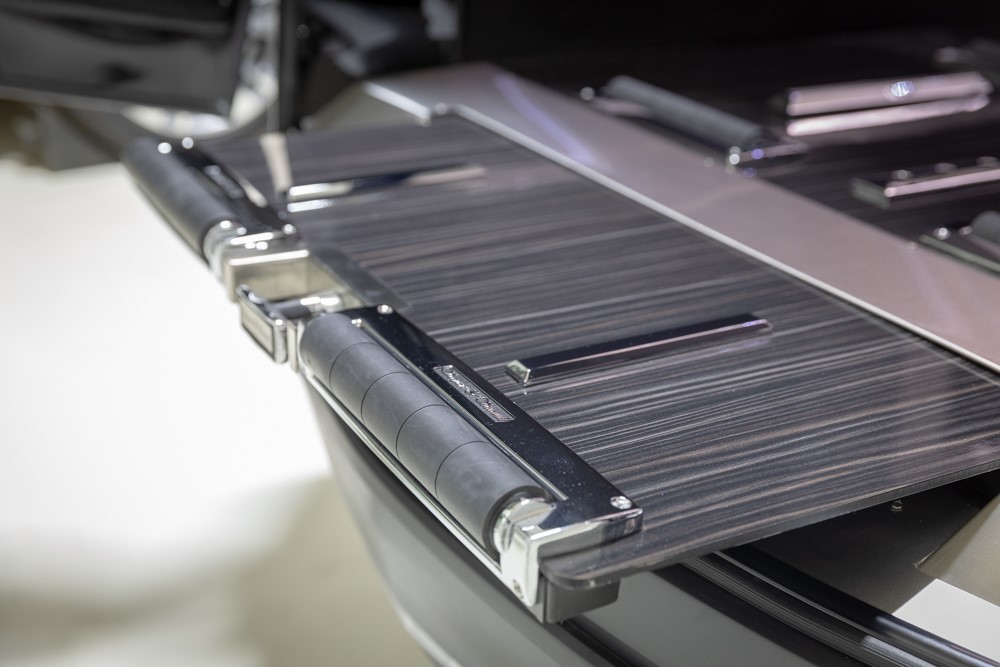

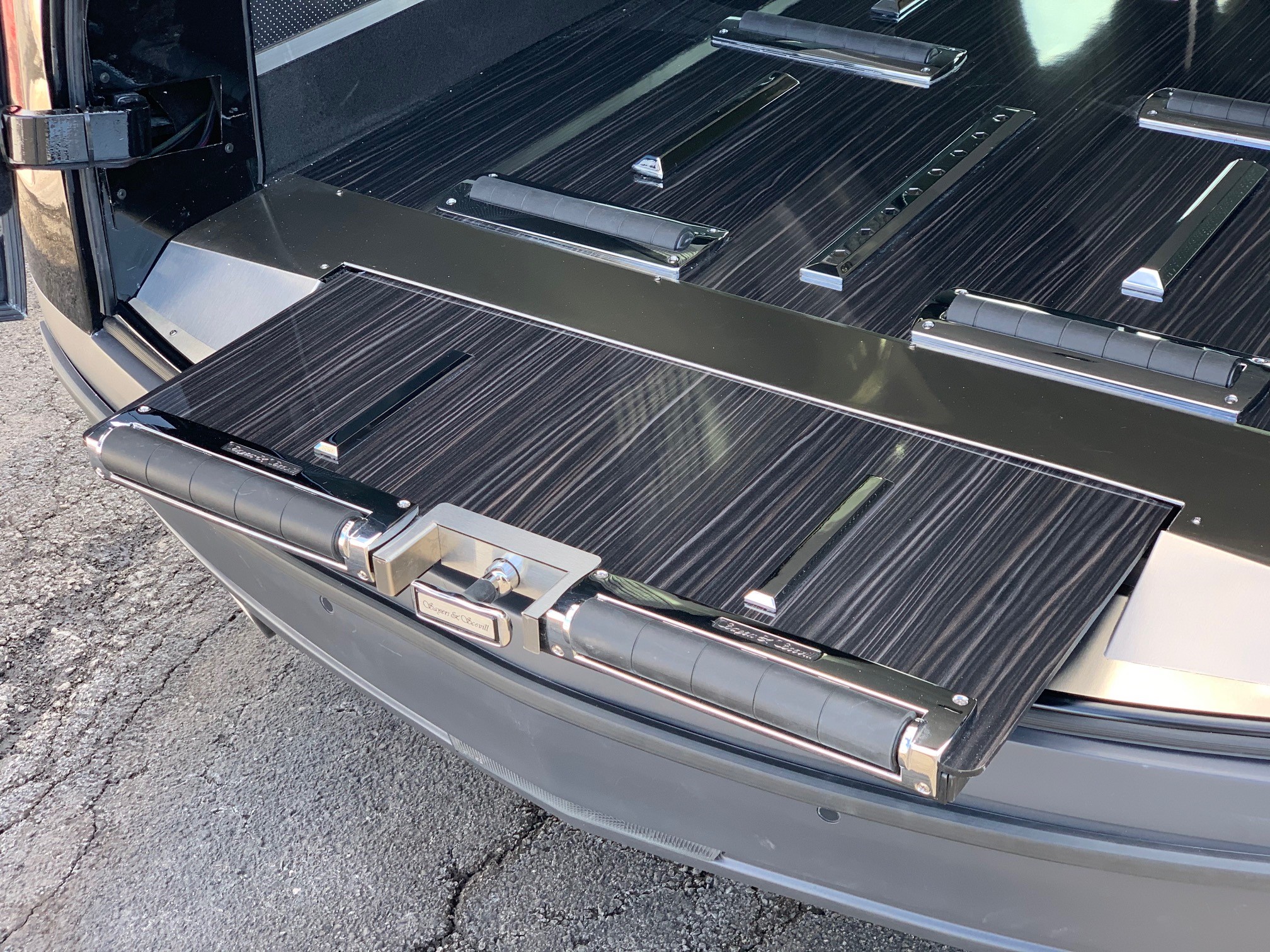

  • Floor Extension – Pull out sill and 2 90° rollers

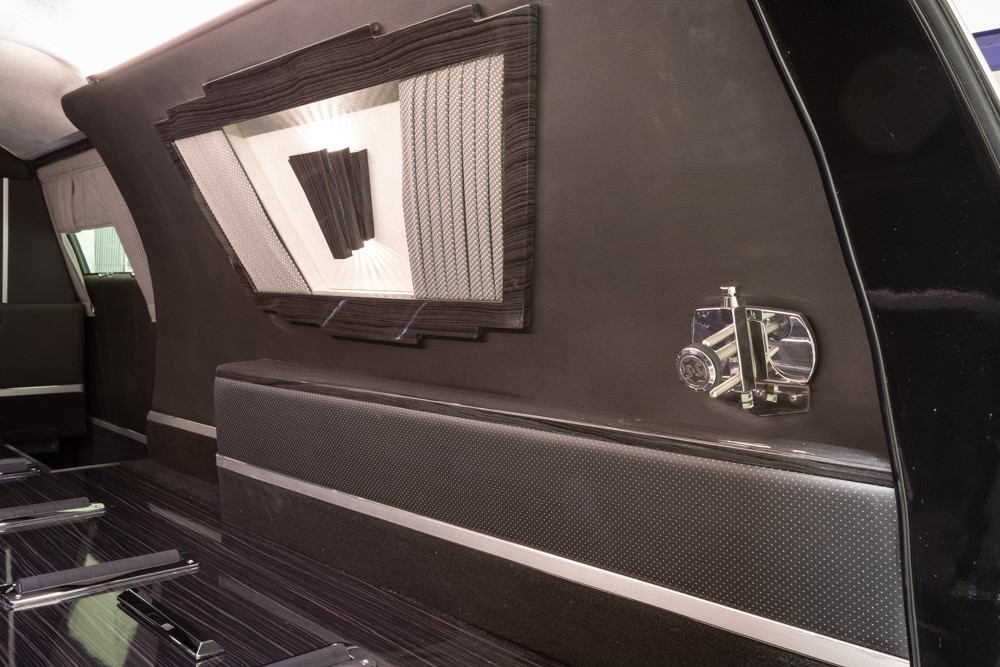

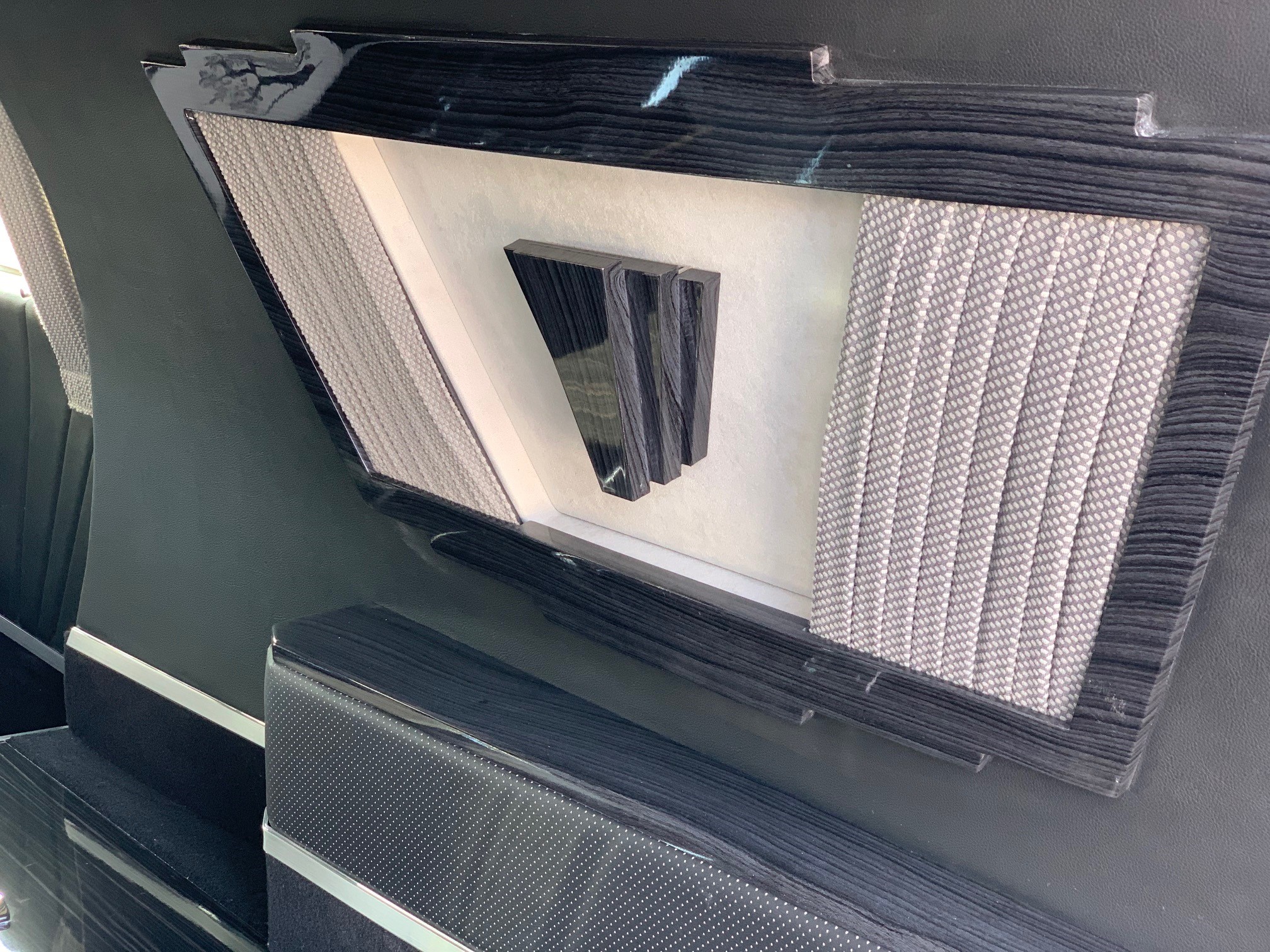

  • Interior Sidewalls – Shadow Box & Wheel Cover Trim
  • Lighted underfloor storage for spare tire and church truck
  • Nameplate Brackets on Side Doors

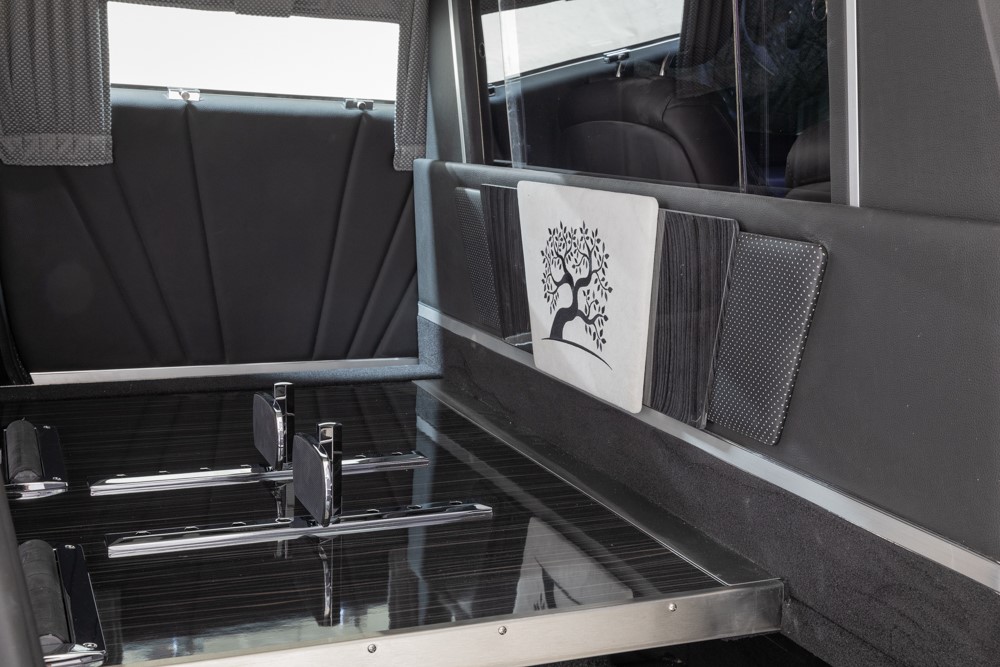

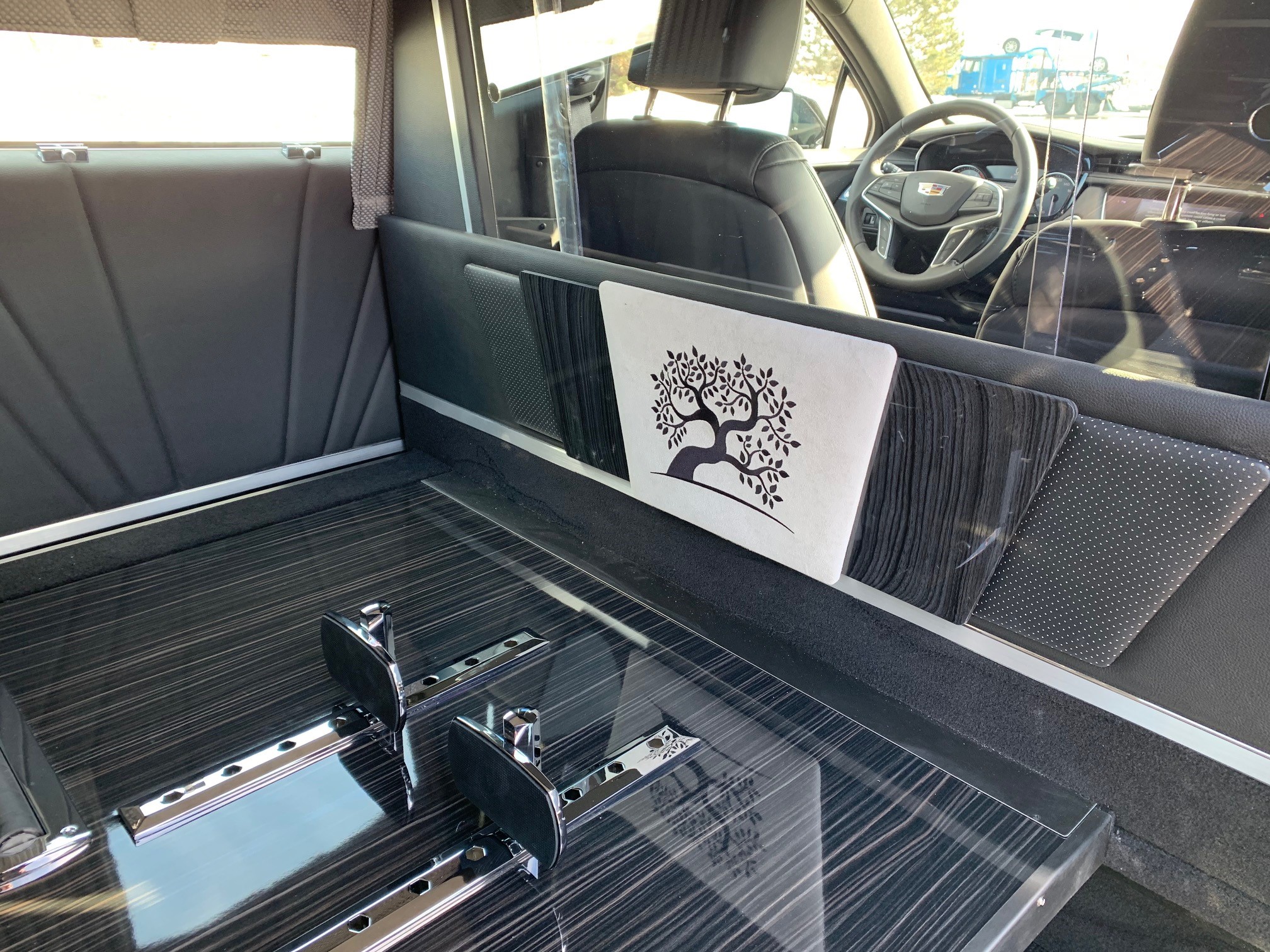

  • Partition – with Decorative Trim
  • Phenolic Floor Covering
  • Pull Handle on Load Door
  • Umbrella storage
  • Urn Holder – Electric

Standard Exterior Features

  • Badging – Sayers & Scovill
  • Belt Moldings – Chrome
  • Pillars – B+C, Black
  • Rocker Moldings – Painted Body Color
  • Roof – Full Vinyl with 1/4 inch padding

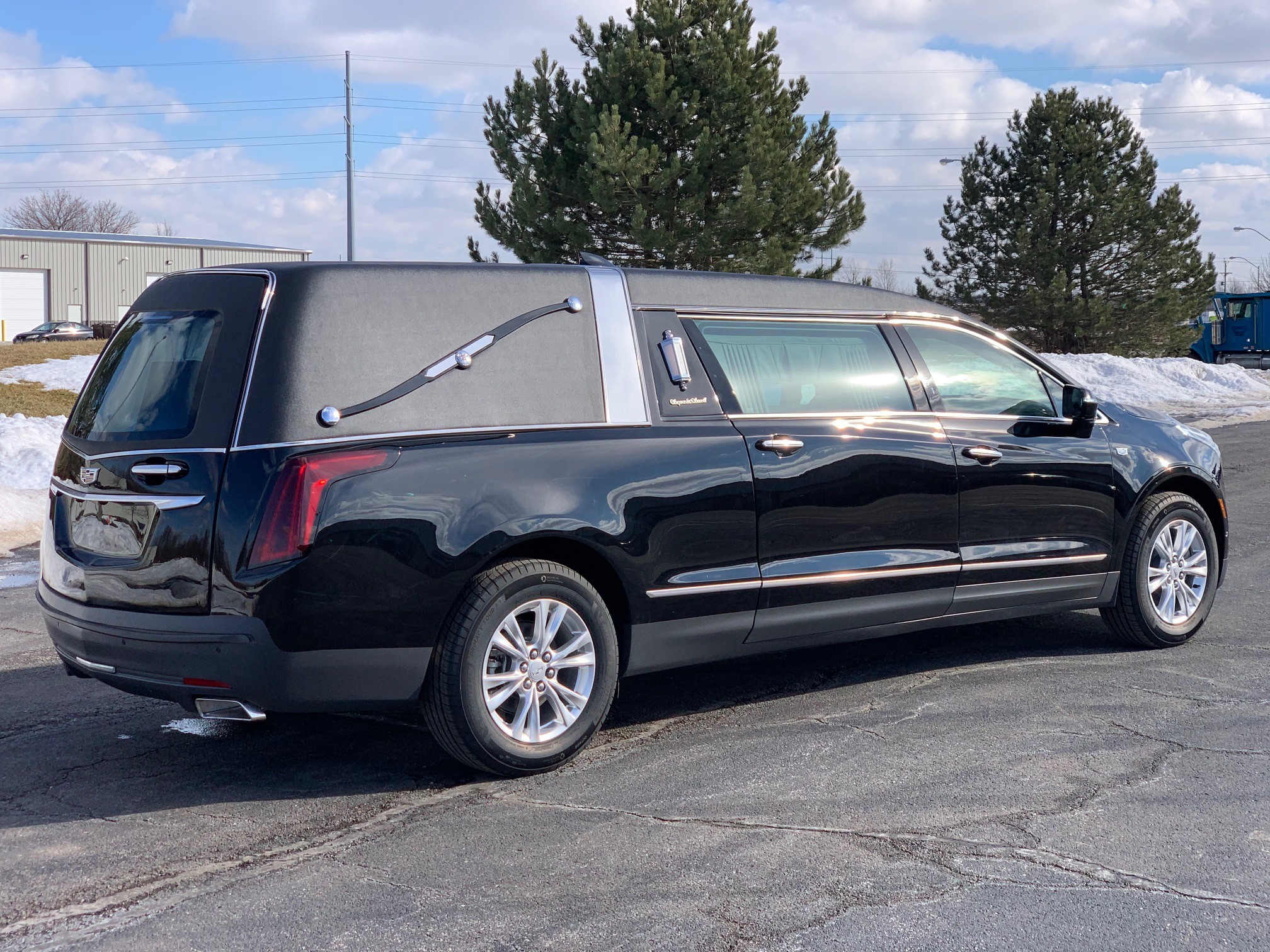

  • S&S Landau Bows with pointed center chrome spears and end caps

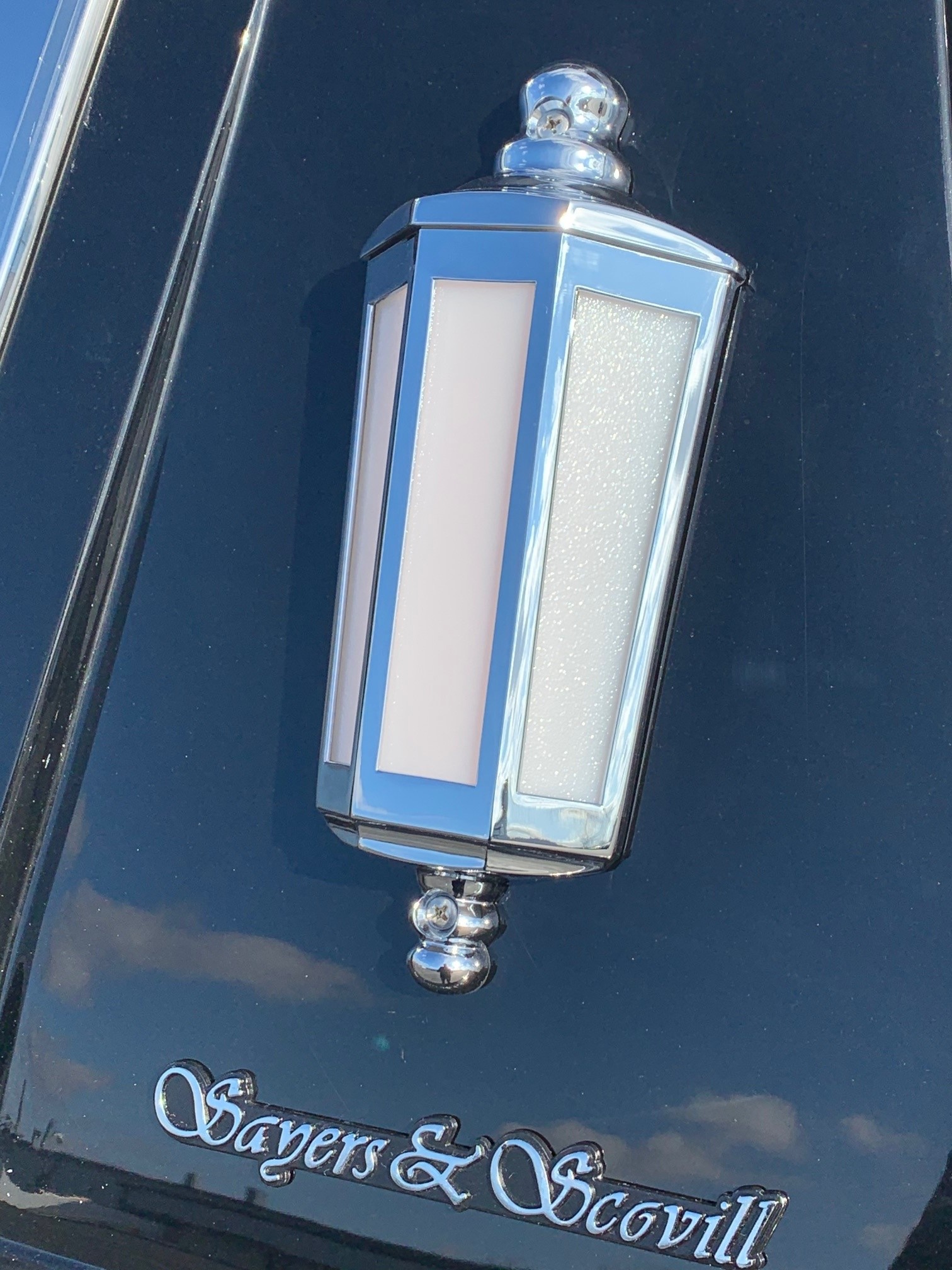

  • S&S Tiffany coach lamps
  • Stainless Steel vinyl top reveal molding
  • Strobes – 4-way – Clear
  • Side door glass with B & C Pillar Appliques

Optional Features

  • Bumper Protector – Carpet – Full Floor
  • Casket Door Hinge – Right Hand Side
  • Casket Guides – Protects interior wheel well from casket damage
  • Church Truck Well – Opened
  • Drapes – 3 – piece sliders – Deluxe
  • Flagstaff Holders-12” with 2 sets of flags
  • Flagstaff Holders -18” with 2 sets of flags
  • Floor Extend Table – Hydraulic – Full Floor
  • Floor Extend Table – Manual – Full Floor
  • License Plate Bracket – Install Front
  • Light Bar – Mini LED with Base and Wiring
  • Light Bar – Pre-Wiring only
  • Name Plate Brackets – Load Door
  • Paint – Full Body Repaint – Past Model Year – Standard Colors
  • Paint – Full Body Repaint – Past Model Year – Tri-Coat
  • Paint – GM/Ford Paint Upcharge – Special Colors
  • Pillars – B+C, Stainless Steel Appliques
  • Roof – Paint 1/2 Top
  • Roof Band – Polished Stainless Steel – In the Motif Panel (wide)
  • Strobes – 360° Package
  • Strobes – 4-way – Purple
  • Strobes – Windshield
  • Undercoating
  • Urn Holder – Portable

Dimensions:

Overall length 239.6″
Overall height 70.1″
Overall width 77.3″
Overall extension 50″
Wheelbase 152.5″
Casket floor length (usable space) 109.5″
Loading door height 39″
Loading door width 46.5″
Loading door angle 135°
Loading height 27.5”
Width between wheelhouses 45.5″
Side door opening angles 78°

* Due to continuous improvement, S&S specifications are subject to change without notice or price adjustment.
