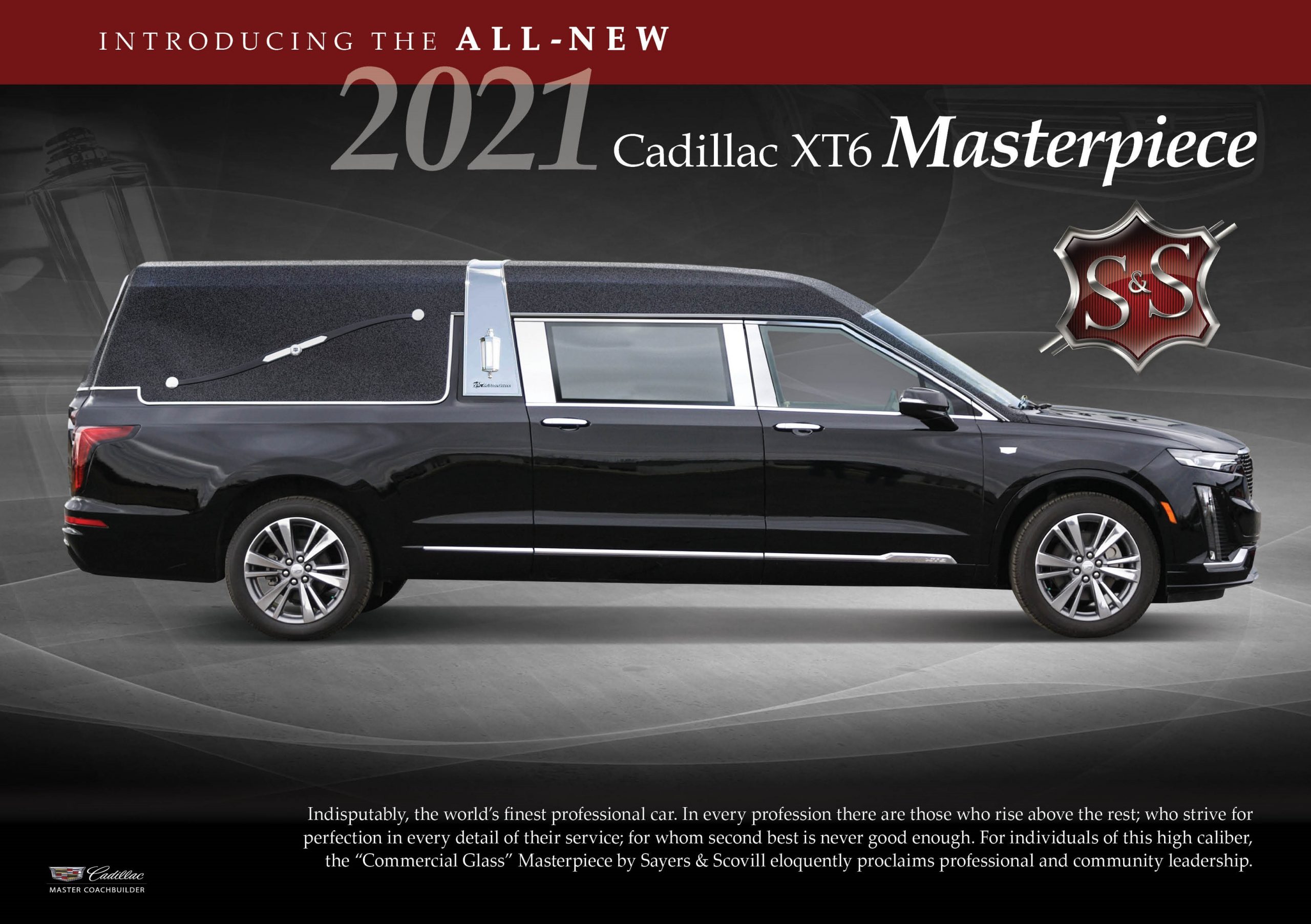

XT6 Masterpiece

SS Masterpiece Coach

S&S COACH COMPANY, Cadillac XT6, Masterpiece, Specifications

General Structural Specifications

  • Assembled on the Main Frame Fixture: Linear Rails & Framing Racks for precision alignment
  • C Pillars: 12-gauge steel provide support for the rear side doors
  • Chassis Extension: 10” Extension after the rear wheels
  • Chassis Extension: 46” Wheelbase Extension
  • Coach Body: High performance vinyl-ester resin
  • Floor Pan: 16-gauge steel floors vs 18 in the OEM
  • Floor Supports: 1″x2″ steel tubing with 16-gauge walls for maximum support
  • Hinges: 7-gauge steel for all hinge plates, 3/8” steel gusset reinforcements, and 10-gauge steel striker
  • Interior Wheel Wells: Modified and reinforced for maximum casket width
  • Partition: 16-gauge steel tubing and 45◦ structural supports
  • Rockers: 12-gauge inner and outer rockers with internal reinforcements vs 14-gauge in OEM
  • Super-Structure: 16-gauge 1 ¼” steel tubing for unsurpassed strength

Standard Functional Features

  • 3rd break light mounted in rear load door
  • Axalta Chroma Premier Paint System: Sealer, Base Coat and Clear Coat: 7 – 9 coats
  • Back-Up Sensors
  • Bumper Protector
  • Casket Door Hinge – Cantilever state-of-the-art left side casket door hinge – opens 270°
  • Commercial Glass Windshield and Pillars
  • Drip Rails – Polished Aluminum
  • Emergency Load Door Release – accessible outside the coach
  • Spare Tire – Space Saver
  • Gas Tank: 19-Gal, right side fill
  • Extension – Double cut- 46″ wheelbase extension plus 10″ rear
  • Side door – 47″ wide with a 78° opening
  • Tempered Glass Partition tilted to reduce glare
  • Windshield and Pillars: Commercial Glass
  • 4-Year / 50,000 Mile Conversion Warranty
  • Wheels, 20″ (50.8 cm) 12-Spoke alloy with Fully Polished finish
  • All Wheel Drive (AWD)
  • Engine, 3.6L V6, DI, VVT, with Automatic Stop/Start (310 hp [231 kW] @ 6600 rpm, 271 lb-ft of torque [366 N-m] @ 5000 rpm)
  • Transmission, 9-speed automatic

Standard Interior Features

  • Bier Pin Plates – Front, 2
  • Bier Pins – Adjustable, quick release
  • Casket Guides – Protects interior wheel well from casket damage
  • Church Truck Well – Closed W/ Flip Lid
  • Deluxe Cloth Headliner
  • Die-Cast, Chrome Plated Hardware: 12 rollers total – 2 90°
  • Die-Cast, Chrome Plated Hardware: 4 skid bars
  • Die-Cast, Chrome Plated Hardware: 5 bier pin plates
  • Drapes – 1 – piece with swags
  • Floor Extension – Pull out sill and 2 90° rollers
  • Interior Sidewalls – Shadow Box & Wheel Cover Trim
  • Lighted underfloor storage for spare tire and church truck
  • Nameplate Brackets on Side Doors
  • Partition – with Decorative Trim
  • Personalization package – Customer logo on Partition & Load Door
  • Phenolic Floor Covering
  • Pull Handle on Load Door
  • Umbrella storage
  • Urn Holder – Electric

Standard Exterior Features

  • Badging – S&S Masterpiece
  • Belt Moldings – Chrome
  • Flagstaff Holders-12” with 2 sets of flags
  • Pillars – B+C, Stainless Steel Appliques
  • Rocker Moldings – Painted Body Color
  • Roof – Full Vinyl with 1/4 inch padding
  • Roof Band – Polished Stainless Steel – In the Motif Panel (wide)
  • S&S Landau Bows with pointed center chrome spears and end caps
  • S&S Tiffany coach lamps
  • Stainless Steel vinyl top reveal molding
  • Strobes – 4-way – Clear
  • Roofline – with distinctive S&S Chamfer
  • Side door glass with B & C Pillar Appliques

Optional Features

  • Bumper Protector – Carpet – Full Floor
  • Casket Door Hinge – Right Hand Side
  • Church Truck Well – Opened
  • Drapes – 3 – piece sliders – Deluxe
  • Flagstaff Holders -18” with 2 sets of flags
  • Floor Extend Table – Hydraulic – Full Floor
  • Floor Extend Table – Manual – Full Floor
  • License Plate Bracket – Install Front
  • Light Bar – Mini LED with Base and Wiring
  • Light Bar – Pre-wiring only
  • Limousine Style Rear Window – Rectangular
  • Name Plate Brackets – Load Door
  • Paint – Full Body Repaint – Past Model Year – Standard Colors
  • Paint – Full Body Repaint – Past Model Year – Tri-Coat
  • Paint – GM/Ford Paint Up charge – Special Colors
  • Roof – Paint 1/2 Top
  • Strobes – 360° Package
  • Strobes – 4-way – Purple
  • Strobes – Windshield
  • Undercoating
  • Urn Holder – Portable

Dimensions:

Overall length 254.5″
Overall height (est.) 77.9″
Overall width 77.3″
Overall extension 56″
Wheelbase 158.7″
Casket floor length (usable space) 120″
Loading door height 40”+
Loading door width 44.25″
Loading door angle 270°
Loading height (est.) 29.1”
Width between wheelhouses 46.0″
Side door opening angles 78°

* Due to continuous improvement, S&S specifications are subject to change without notice or price adjustment.
