MK Coach Standard Conversion specification.

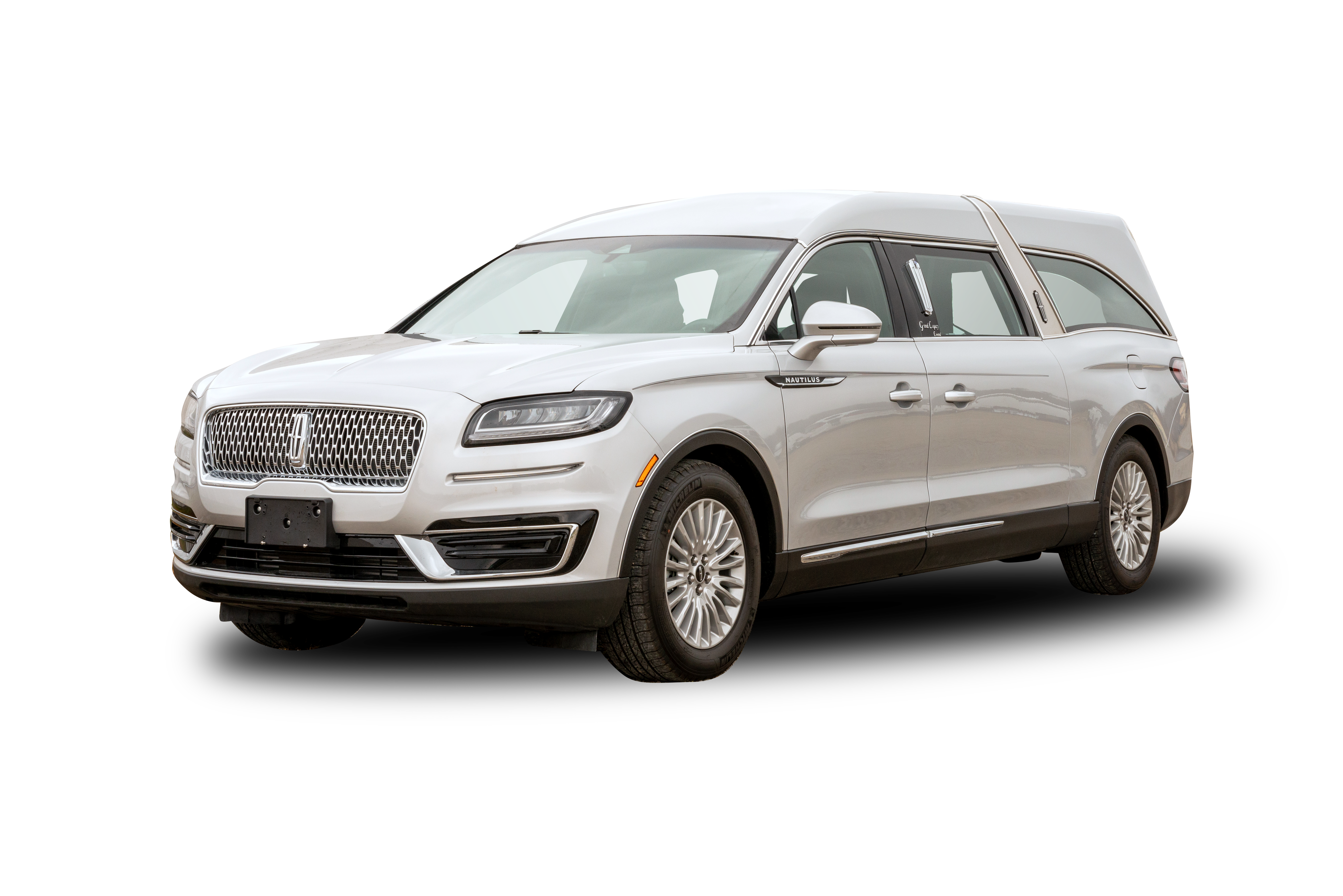

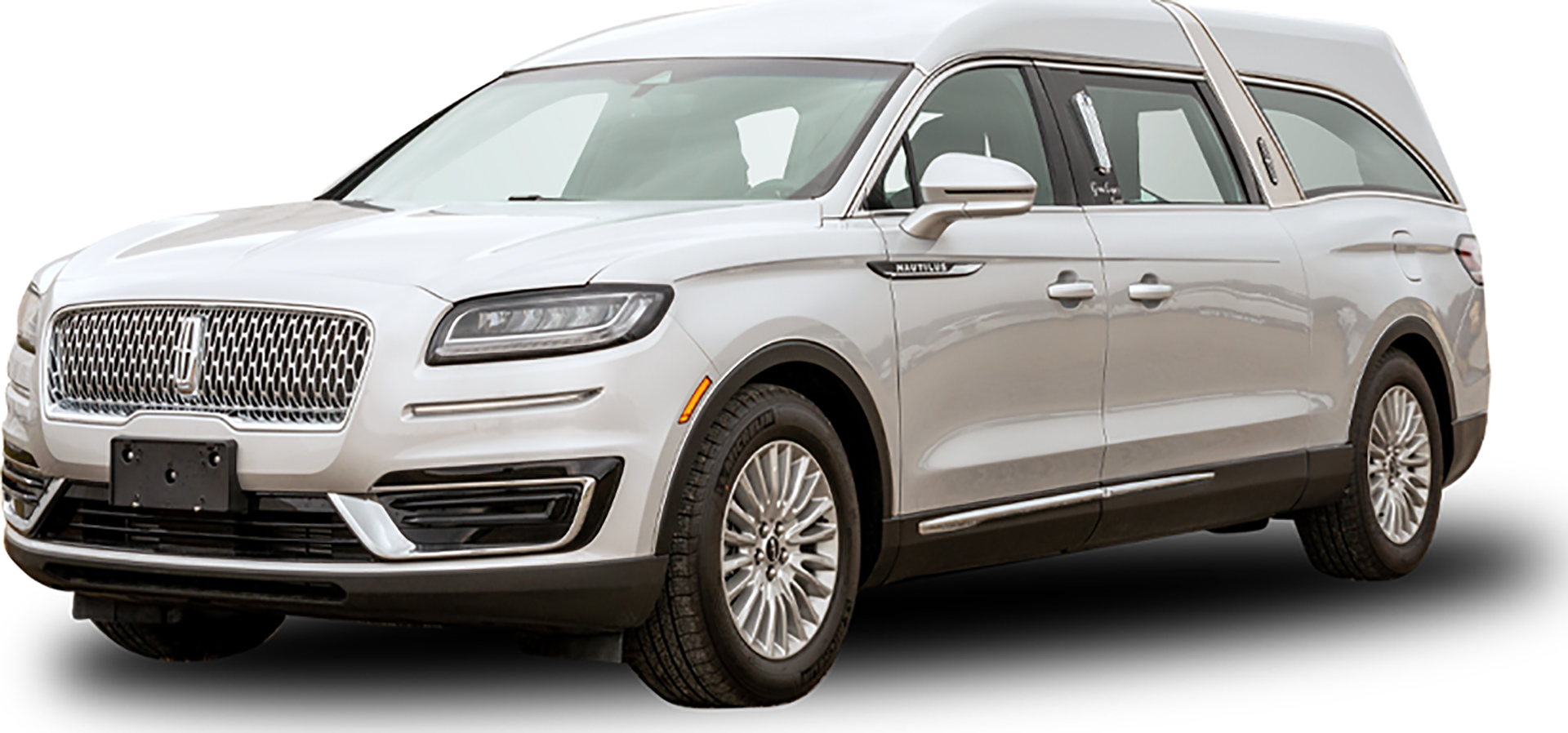

Lincoln Nautilus GRAND LEGACY LIMITED

Base Chassis Features

  • Canadian Nautilus Chassis with Reserve package and Intelligent All Wheel Drive AWD
  • 2.0L Turbocharged I-4 Engine with Auto Start-Stop Technology
  • 18″ Premium Painted Bright Machined Aluminum Wheels
  • Full LED Multi-Projector Headlamps
  • Connected Built in Navigation System
  • Premium Leather-Trimmed Seating
  • ABS Bumper protector

Standard Conversion Features

  • Premium Enhanced Interior with Lanterns
  • Heat and A/C ducted into casket compartment (avoid frosting in winter)

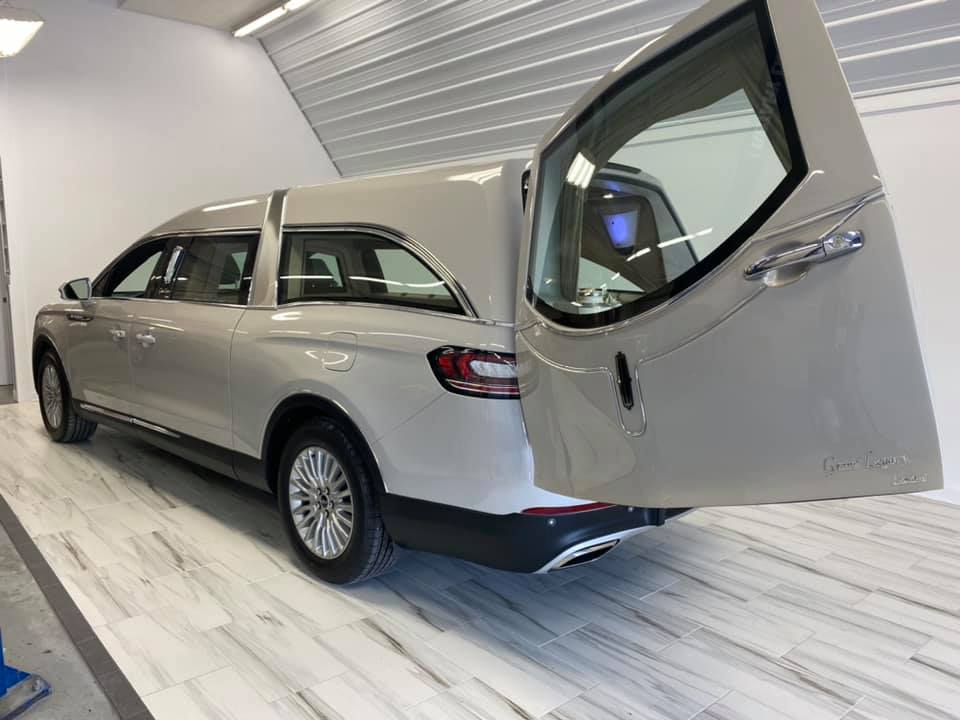

  • Load Door High View
  • Fully Painted roof with vista glass skylight

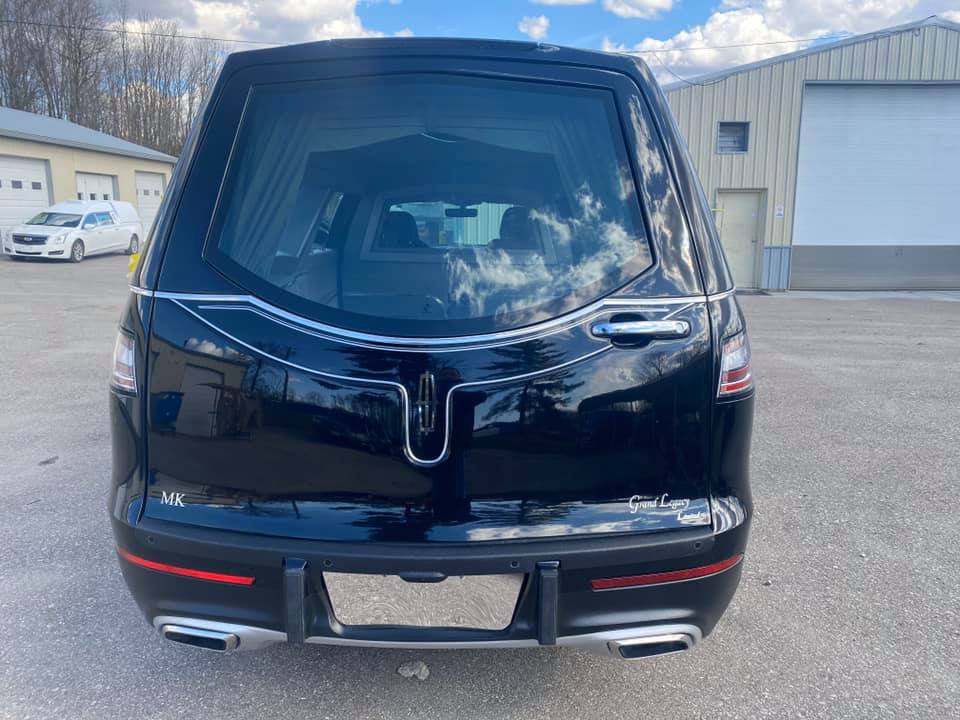

  • Landau glass (Teardrop rear glass, no landau bars)
  • Fully Painted Roof with Stainless Band
  • High-quality Fiberglass resins shell
  • Full Travel driver and front passenger seats
  • Unique Steel roll Cage partition to protect driver.

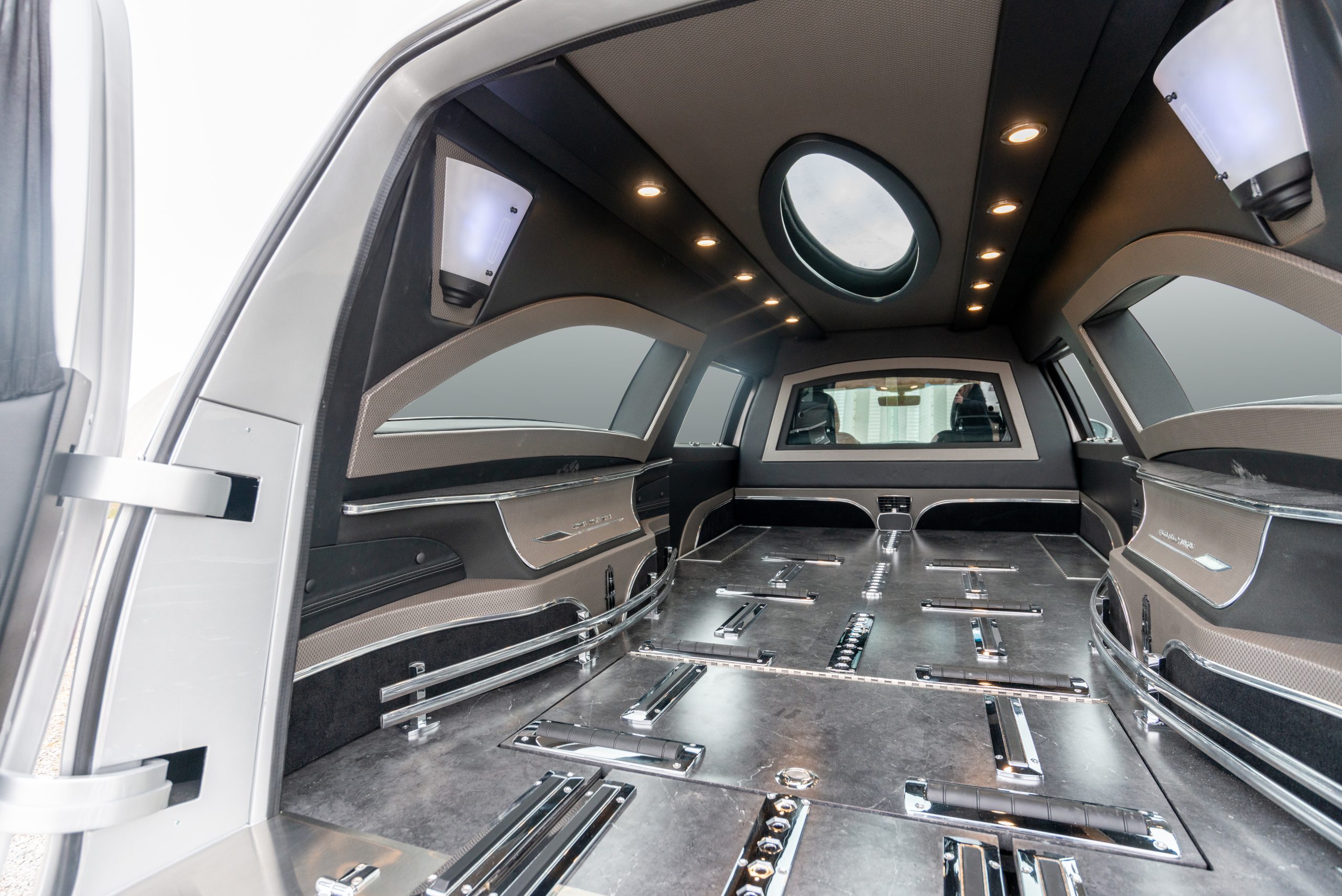

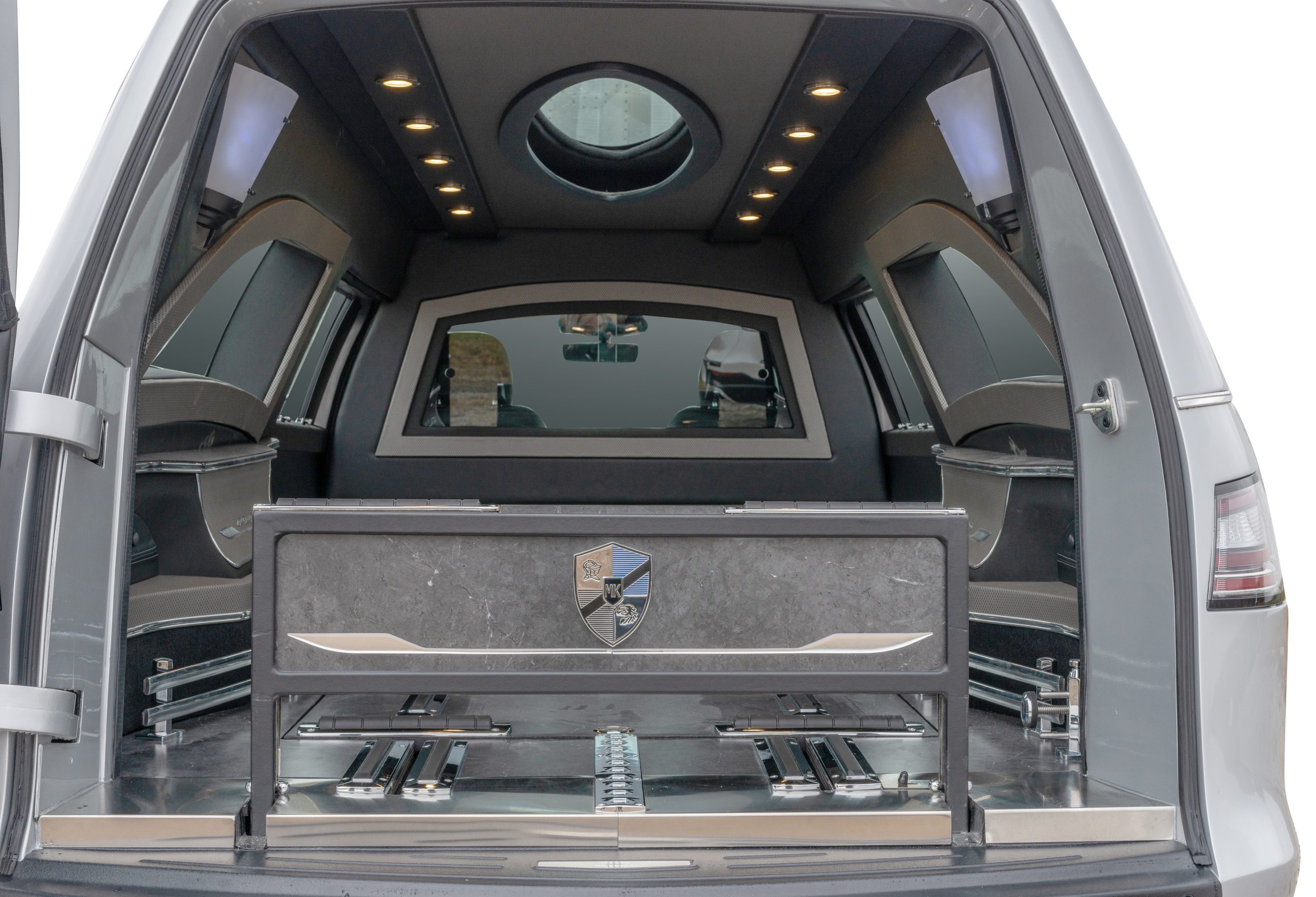

  • Casket floor- 8 Rollers and 2 corner rollers in stainless steel surround
  • ABS Bumper protector- Flush mount
  • Opera Panel with coach lamp set
  • Traditional Casket door with a 48.5″ opening width
  • Load (Casket) Door – Choice of right or left hinging.
  • Glass Partition

Available Options

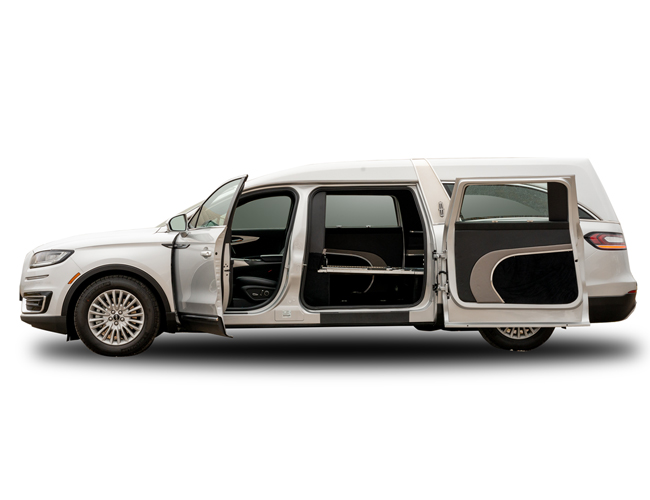

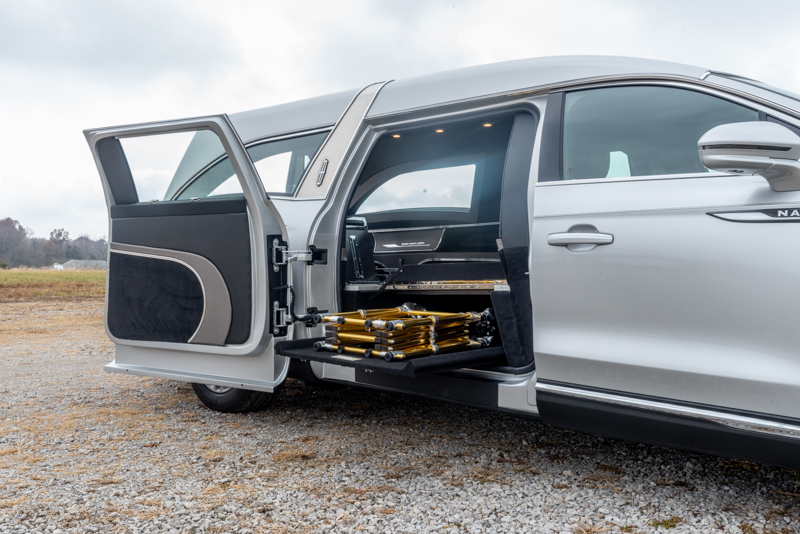

  • Reverse Rear Side Doors
  • Carpeted Bumper Protector Short
  • Church Truck Sliding Tray
  • Chrome Interior Protector (casket guides)
  • Flag Staff with Mounts
  • Folding Extend -A-Sill
  • Paint Special Color (Complete repaint)
  • Strobe 360 Package (Grille + Rear Side Doors + Rear Load Door)
  • Strobe Lights in Grill (4)

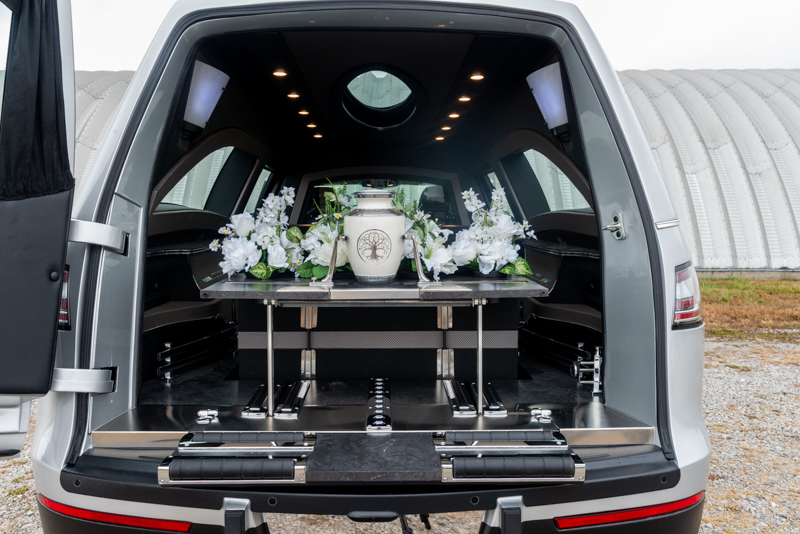

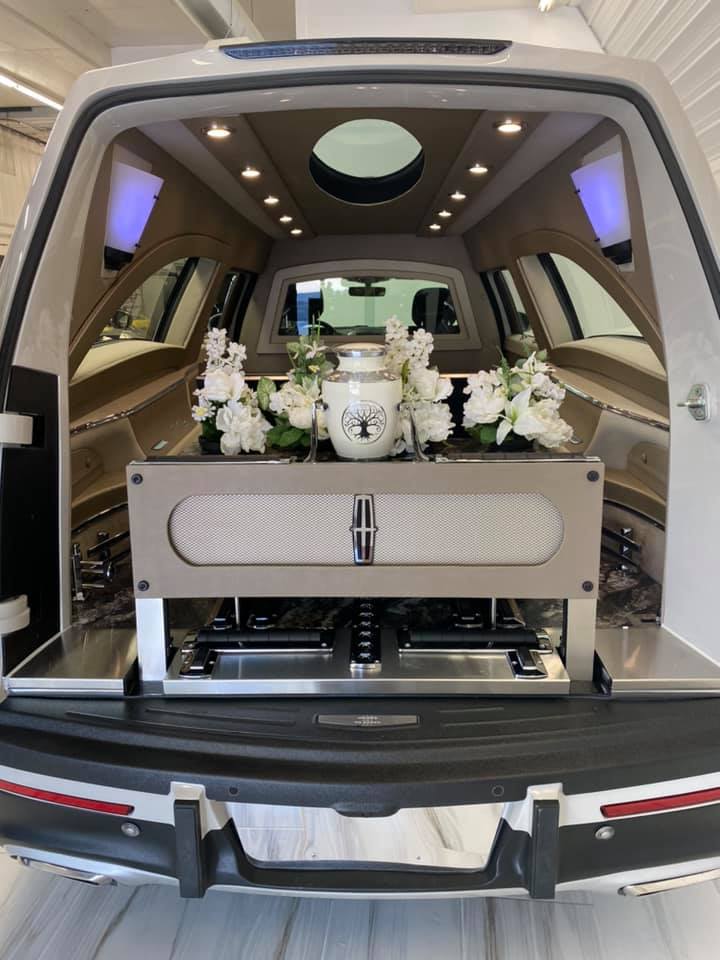

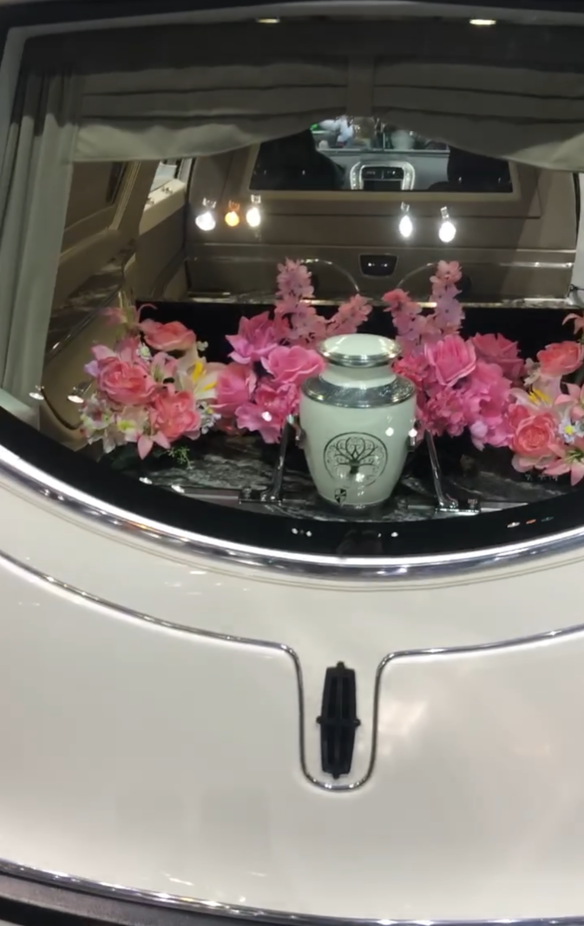

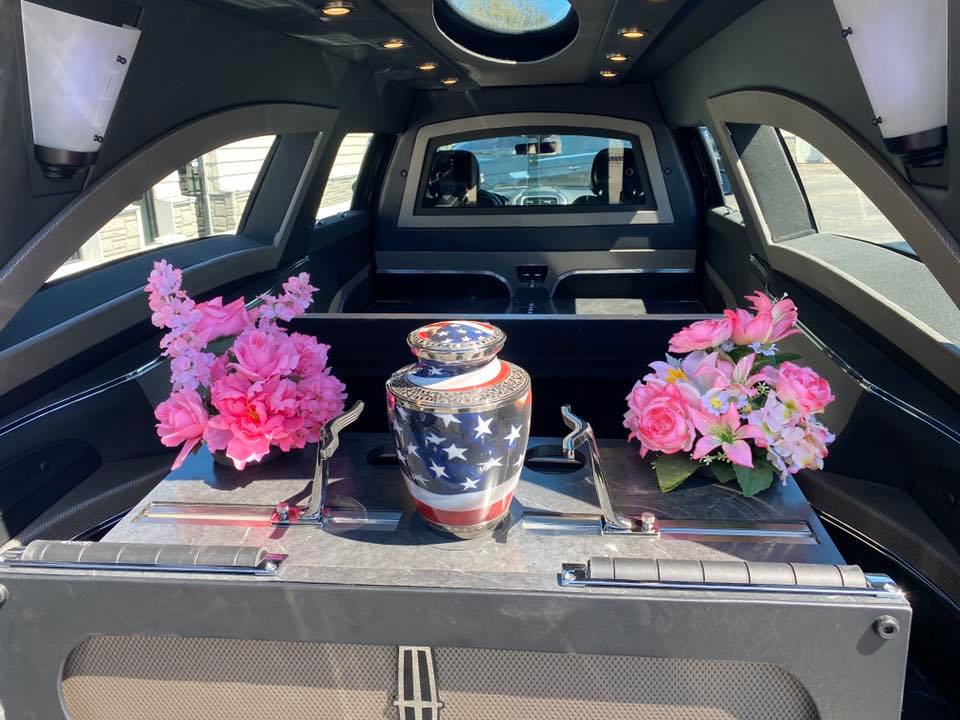

  • Urn – Clave Manual
  • Urn – Clave Portable

Dimensions

Load Door opening Height. 101.6 cm / 40″
Ground-To-Casket floor Loading Height 71.12 cm / 28″
Load Door Opening Width 123.19 cm / 48.5″
Casket Floor width Between wheel wells 111.76 cm / 44″
Casket Floor Length 288.29 cm / 113.5″
Rear Side Door width 119.38 cm / 47″
Overall Length 589.28 cm / 232″
Overall Width 193.29 cm / 76.1″
Exterior Height 1985.42 cm / 73″
Wheelbase 361.18 cm / 142.2″
Ground Clearance 20.32 cm / 8″
